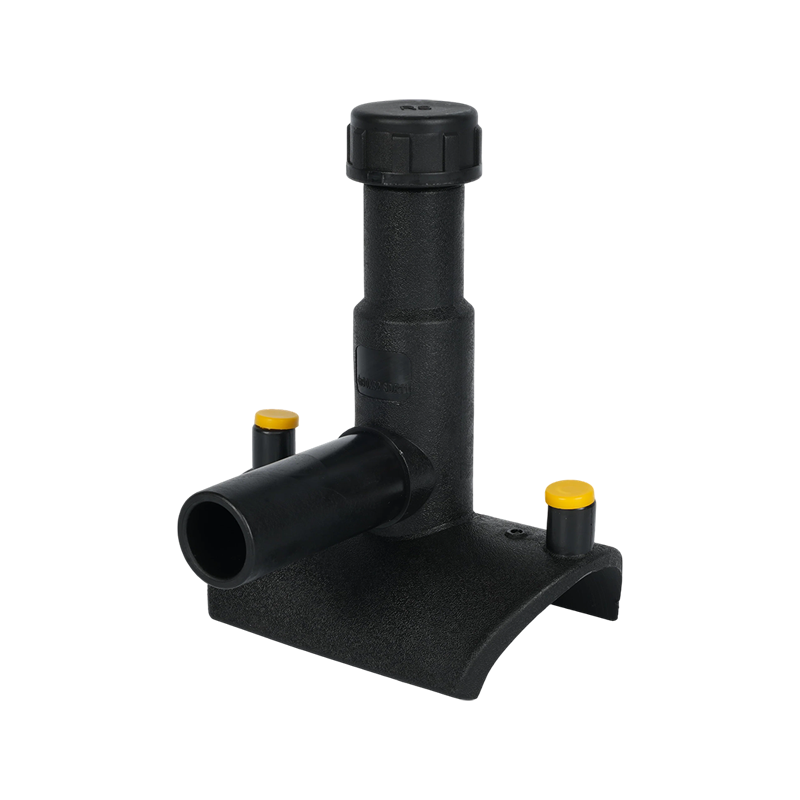

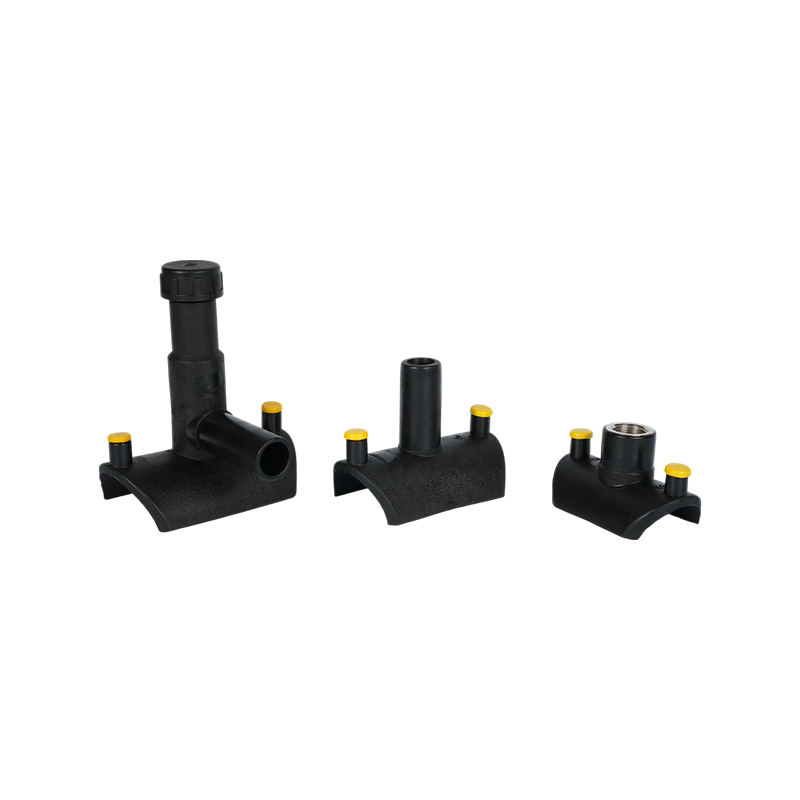

HDPE Electrofusion Bypass Saddle

Product Overview

The HDPE Electrofusion Bypass Saddle is designed to create a branch connection from an existing HDPE pipeline using a saddle-type configuration. The saddle is electrofusion welded to the main HDPE pipe, while the branch outlet can be connected according to the supplied fitting configuration.

Manufactured from PE100 polyethylene, the fitting provides good resistance to chemical corrosion and salt exposure together with the flexibility and impact resistance associated with HDPE. The electrofusion connection forms an integrated welded joint with compatible HDPE pipe when properly installed.

The HDPE Electrofusion Bypass Saddle provides a practical branch connection solution for water supply, drainage, agricultural irrigation, and other compatible HDPE pipeline systems.

Category: Electrofusion Fittings Prev: HDPE Electrofusion Saddle Tee Next: HDPE Electrofusion Female Threaded Saddle

Description Contact Us

Product Description:

Applications

Water Supply & Distribution — for creating branch connections from HDPE water supply pipelines.

Agricultural Irrigation — for adding branch lines to irrigation pipelines and distribution networks.

Drainage Systems — for compatible HDPE drainage systems requiring additional branch connections.

Pipeline Infrastructure — for modifying or extending HDPE pipeline networks where a saddle-type branch connection is suitable.

Utility Piping — for compatible HDPE pipeline applications requiring a welded branch outlet.

Key Features

Bypass Saddle Configuration — provides a saddle-type solution for establishing a branch connection.

Electrofusion Saddle Connection — designed for electrofusion welding to the main HDPE pipe.

Flexible Branch Connection — the branch side can be connected according to the supplied product configuration.

PE100 Material — provides good resistance to chemical corrosion, salt exposure, and mechanical stress.

Integrated Welded Joint — forms a secure connection with compatible HDPE pipe when the appropriate electrofusion procedure is followed.

PN16 Pressure Rating — available for pipeline systems requiring a PN16 pressure configuration.

OEM / ODM / OBM Support — available for customized product configurations and private-label sourcing.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
63×20			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
63×25			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
63×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
75×20			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
75×25			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
75×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
90×20			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
90×25			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
90×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
110×25			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
110×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
125×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
140×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
160×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
180×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
200×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
225×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
250×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
280×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
315×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, engineering contractors, pipeline suppliers, and private-label brands. Customized configurations can be supplied according to project requirements, connection methods, pipe specifications, and sourcing needs.
