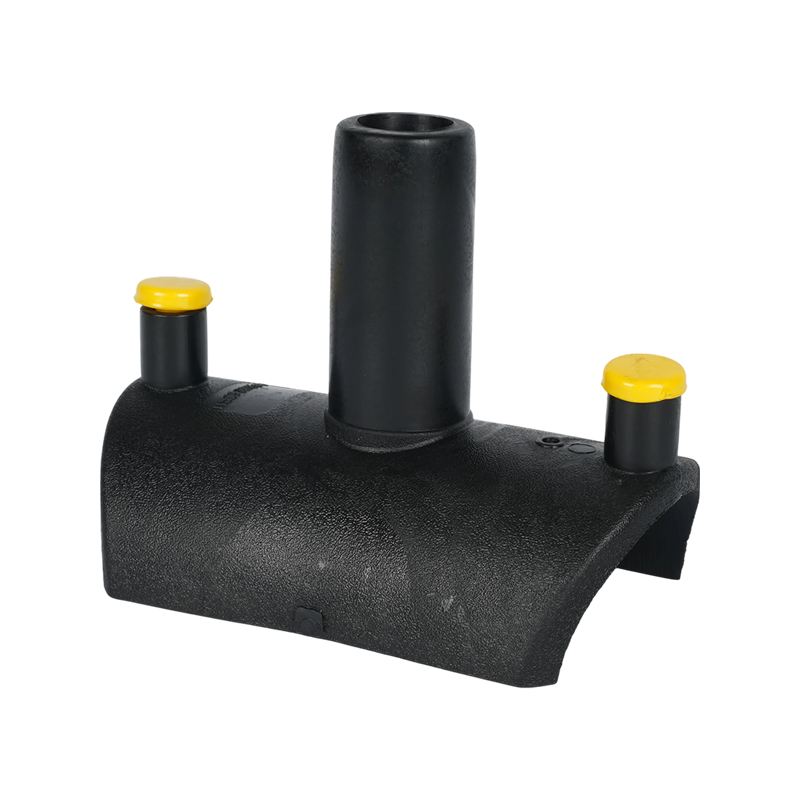

HDPE Electrofusion Saddle Tee

Product Overview

The HDPE Electrofusion Saddle Tee is designed to create branch connections on compatible HDPE pipelines. Manufactured from PE100 polyethylene, this saddle tee uses an electrofusion saddle connection on the main pipe, while the branch outlet is designed for socket fusion or electrofusion sleeve connection according to the applicable configuration.

The saddle-type structure provides a practical way to connect a smaller branch pipe to a larger main pipeline. The HDPE Electrofusion Saddle Tee is available in multiple main-pipe and branch-outlet combinations, making it suitable for water distribution, irrigation, and other compatible HDPE pipeline systems requiring branch connections.

Category: Electrofusion Fittings Prev: HDPE Electrofusion Male Adaptor Next: HDPE Electrofusion Bypass Saddle

Description Contact Us

Product Description:

Applications

Water Supply Systems — for creating branch connections from HDPE main pipelines in water distribution networks.

Irrigation Systems — for connecting branch lines to main irrigation pipelines.

Municipal Pipeline Networks — for branch connections in compatible HDPE water infrastructure.

Pipeline Distribution Systems — for adding branch outlets to existing HDPE pipeline layouts.

Industrial Piping — for compatible fluid-handling systems requiring HDPE branch connections.

Key Features

Saddle Tee Configuration — provides a dedicated branch outlet for connecting a smaller pipe to a larger HDPE main pipe.

Electrofusion Main-Pipe Connection — the saddle section is electrofusion-welded to the compatible HDPE main pipe.

Flexible Branch Connection — the branch outlet supports socket fusion or electrofusion sleeve connection according to the applicable configuration.

PE100 Material — manufactured from PE100 polyethylene for good corrosion resistance, impact resistance, and long-term pipeline performance.

Main Pipe × Branch Pipe Combinations — available in multiple combinations to accommodate different main-pipe and branch-pipe dimensions.

Wide Size Range — supplied for main pipe sizes from 63 mm to 315 mm according to the product specifications.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
63×20			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
63×25			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
63×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
75×20			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
75×25			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
75×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
90×25			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
90×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
110×25			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
110×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
110×63			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
125×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
125×63			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
140×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
140×63			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
160×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
160×63			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
160×90			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
160*110			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
180×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
180×63			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
180×90			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
200×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
200×63			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
200×110			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
225×32			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
225×63			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
225×110			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
250×63			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
250×110			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
280×63			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
280×110			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
315×63			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
315×110			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection
315×160			✓	PE100 grade, polyethylene	Saddle type tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, hot melt socket/electric melt sleeve connection

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, pipeline suppliers, irrigation companies, engineering contractors, and private-label brands. Product configurations, packaging, and order quantities can be customized according to customer requirements and project needs.
