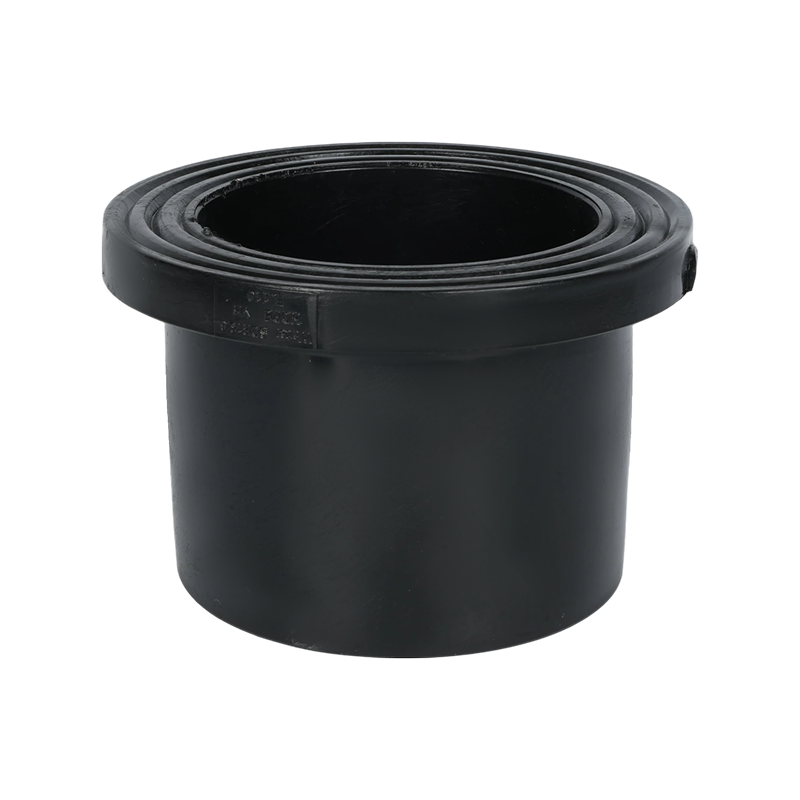

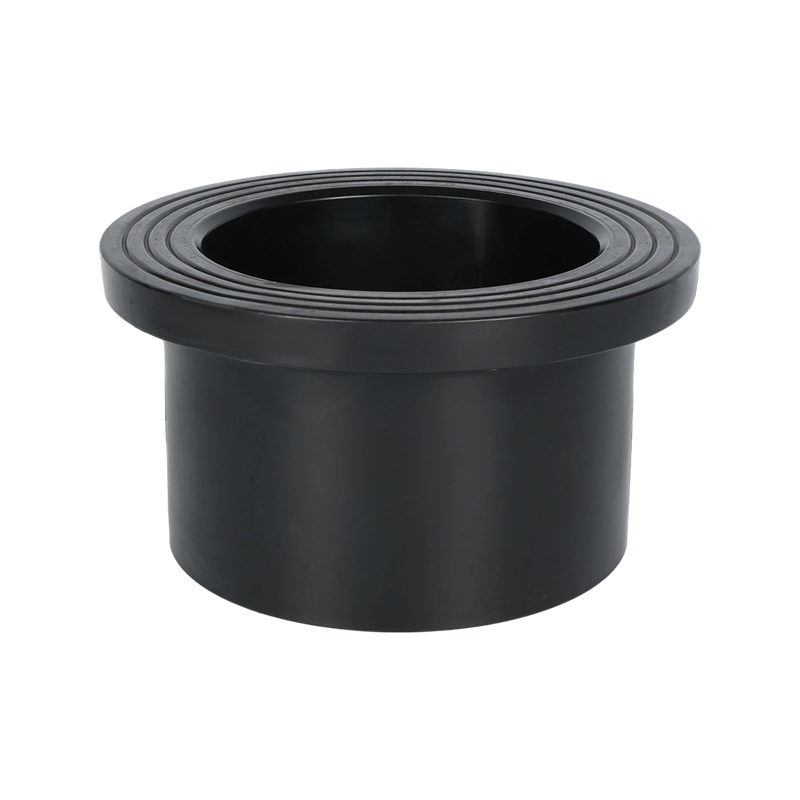

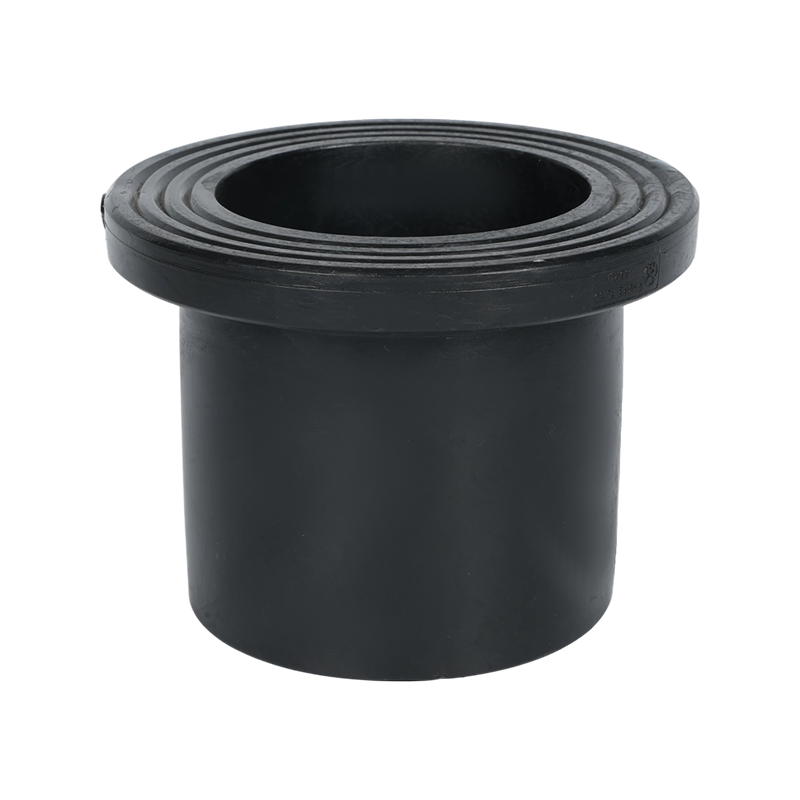

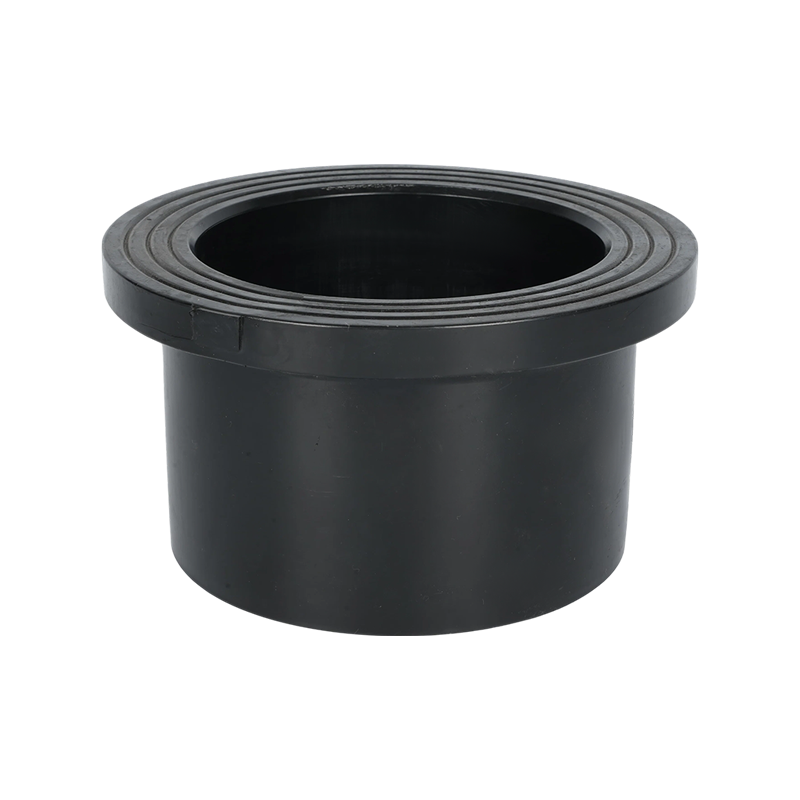

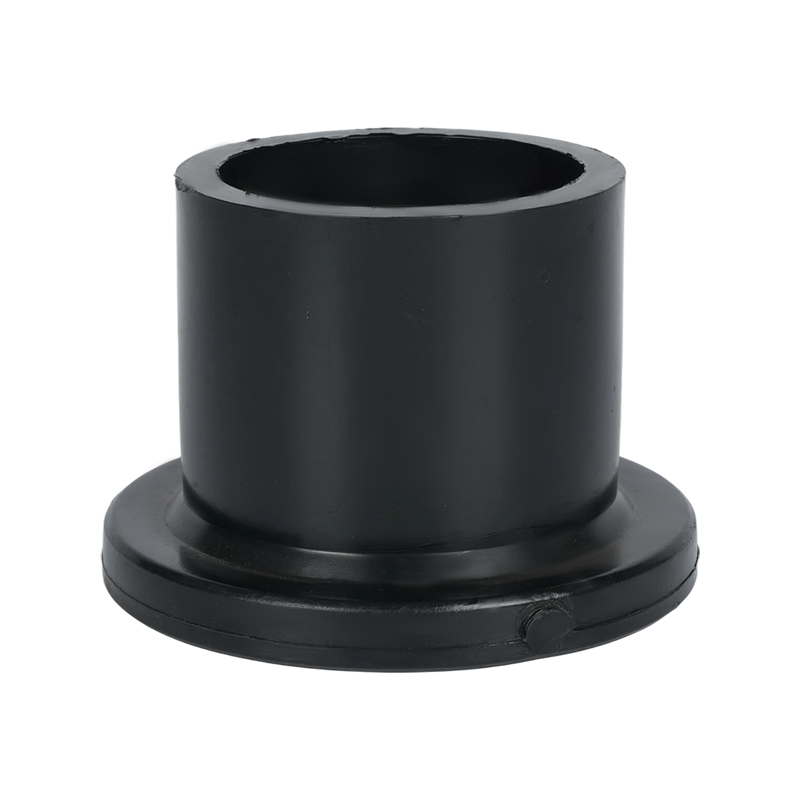

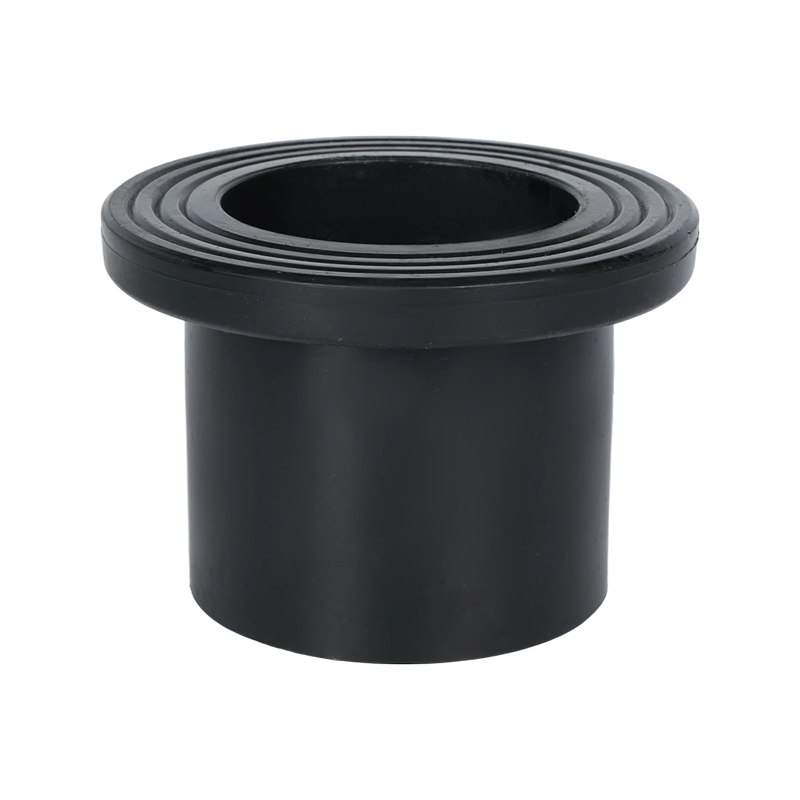

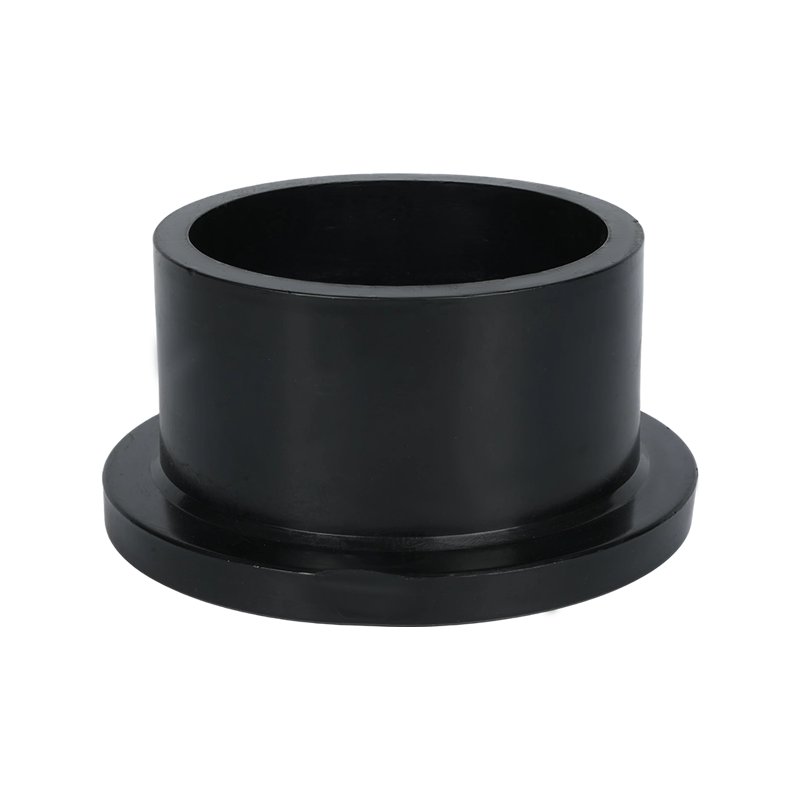

HDPE Butt Fusion Flange Adaptor

Product Overview

The HDPE Butt Fusion Flange Adaptor is designed to connect HDPE pipes to flanged valves, pipes, pumps, and other pipeline components. It combines a butt fusion end for permanent connection to HDPE pipe with a flange adaptor section for bolted connections.

Made from PE100 polyethylene, the adaptor provides good corrosion resistance, impact resistance, and long-term durability. The HDPE Butt Fusion Flange Adaptor is suitable for pipeline systems where HDPE piping needs to connect to equipment or components using a flanged connection.

Contact Us
Category: Butt Fusion Fittings Prev: HDPE Butt Fusion Equal Tee Next: HDPE Butt Fusion Reducer
Description Contact Us
Product Description:

Applications

Water Supply Systems — for connecting HDPE pipelines to flanged valves, pumps, and other equipment.

Irrigation Systems — for connecting HDPE pipes to flanged irrigation components and control equipment.

Industrial Piping — for connecting HDPE pipelines with flanged equipment and pipeline components.

Drainage Systems — suitable for HDPE drainage and fluid discharge systems requiring flanged connections.

Key Features

Butt Fusion Connection — provides a permanent heat-fused connection between the HDPE pipe and adaptor.

Flanged Connection — allows HDPE pipelines to connect to compatible flanged valves, equipment, and pipeline components.

PE100 Material — offers good corrosion resistance, impact resistance, and long-term durability.

HDPE-to-Flange Transition — provides a practical transition from polyethylene pipe to a bolted pipeline connection.

Wide Size Range — available in sizes from 63 mm to 630 mm to accommodate different HDPE pipeline configurations.

Product Specifications:
Product Model PN1.0 PN1.25 PN1.6 Material Pipe Fitting Type Connection Method
F63 ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F75 ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F90 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F110 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F125 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F140 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F160 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F180 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F200 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F225 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F250 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F280 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F315 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F355 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F400 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F450 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F500 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F560 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
F630 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, pipe fitting suppliers, engineering contractors, and private-label brands. Product sizes, configurations, packaging, and other requirements can be customized according to customer and project specifications.

FAQ:

What is an HDPE Butt Fusion Flange Adaptor used for?

It is used to connect HDPE pipe to flanged valves, pumps, equipment, and other pipeline components.

How is the HDPE side connected?

The HDPE side is connected to compatible HDPE pipe using butt fusion, creating a permanent fused joint.

How does the flange side connect to other components?

The flange side is connected to compatible flanged components using bolts and the appropriate sealing arrangement.

What material is the adaptor made from?

The adaptor is made from PE100 polyethylene, providing good corrosion resistance, impact resistance, and durability.

What sizes are available?

Available sizes range from 63 mm to 630 mm. The complete size range should be confirmed according to the product specification table.

Can this adaptor be supplied for OEM projects?

Yes. We support OEM, ODM, and OBM requirements for distributors, engineering contractors, and private-label customers.
