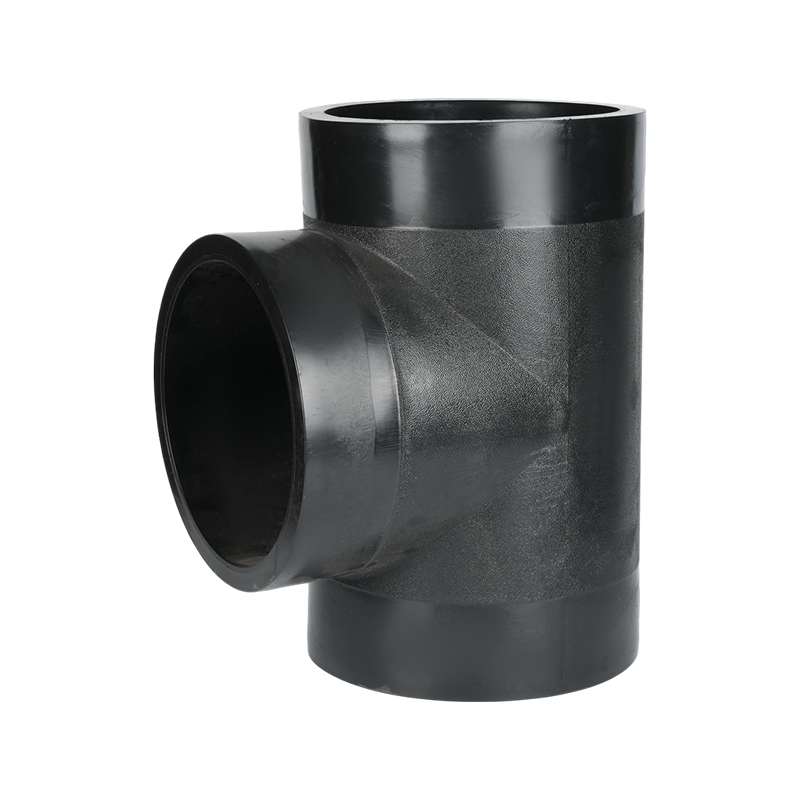

HDPE Butt Fusion Equal Tee

Product Overview

The HDPE Butt Fusion Equal Tee is designed to create a 90-degree branch connection between three HDPE pipes of the same diameter. All three outlets use butt fusion connections, providing a fully fused connection for HDPE pipeline systems.

Made from PE100 polyethylene, the tee offers good corrosion resistance, impact resistance, and long-term durability. Its equal-size configuration provides a straightforward solution for branching HDPE pipelines without changing the pipe diameter. The HDPE Butt Fusion Equal Tee is suitable for water supply, irrigation, drainage, and industrial piping systems.

Category: Butt Fusion Fittings Prev: HDPE Butt Fusion 22.5 Degree Elbow Next: HDPE Butt Fusion Flange Adaptor

Description Contact Us

Product Description:

Applications

Water Supply Systems — for creating branch connections in HDPE water distribution pipelines.

Irrigation Systems — for branching main and lateral irrigation pipelines with the same pipe diameter.

Drainage Systems — for connecting and branching HDPE drainage and discharge pipelines.

Industrial Piping — for creating equal-size branch connections in fluid handling and process piping systems.

Key Features

Equal-Size Three-Way Design — connects three HDPE pipes of the same outside diameter.

90-Degree Branch — provides a standard perpendicular branch connection for pipeline layouts.

Butt Fusion Connection — supports permanent heat-fused connections with compatible HDPE pipes and fittings.

PE100 Material — offers good resistance to corrosion, impact, and long-term exposure in piping applications.

Wide Size Range — available from 63 mm to 500 mm for different pipeline configurations.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
T63			✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T75			✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T90			✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T110	✓	✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T125		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T140	✓	✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T160	✓	✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T200	✓	✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T225	✓	✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T250	✓	✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T280	✓	✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T315	✓	✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T355	✓	✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T400	✓		✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
T500	✓			PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, pipe fitting suppliers, engineering contractors, and private-label brands. Product sizes, configurations, packaging, and other requirements can be customized according to customer and project specifications.
