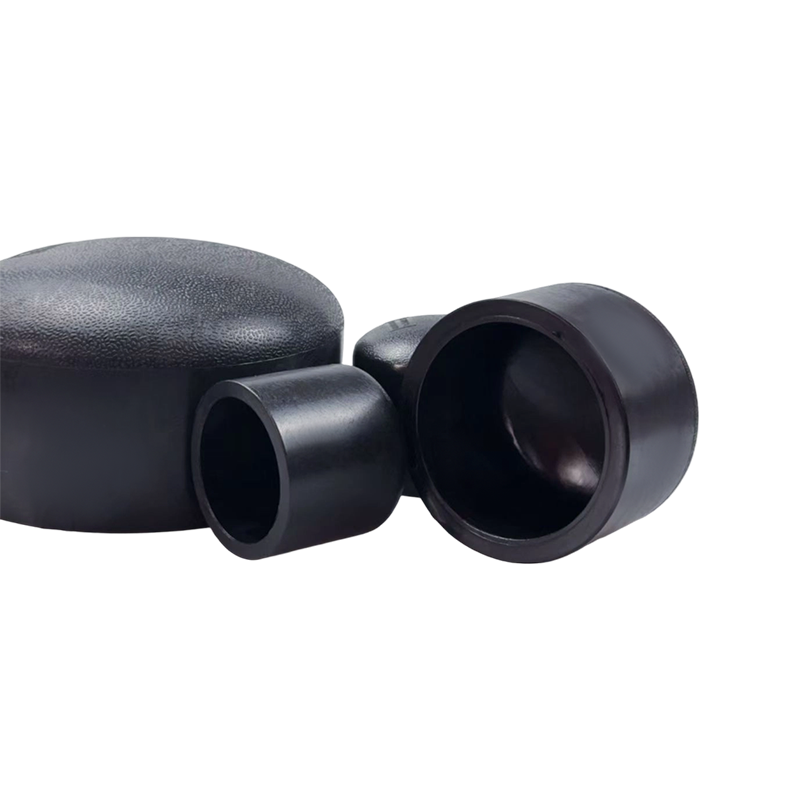

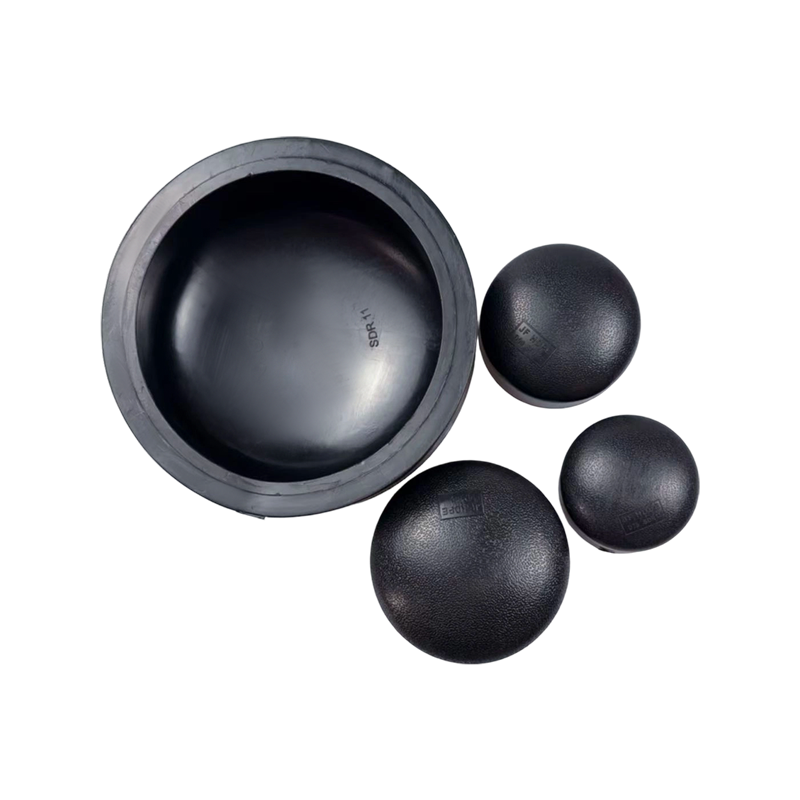

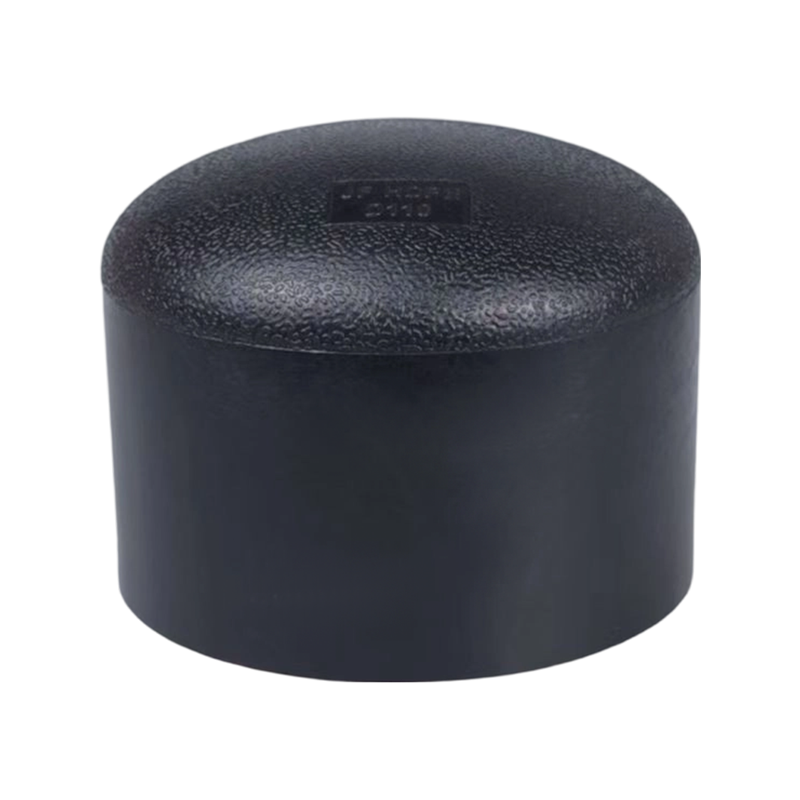

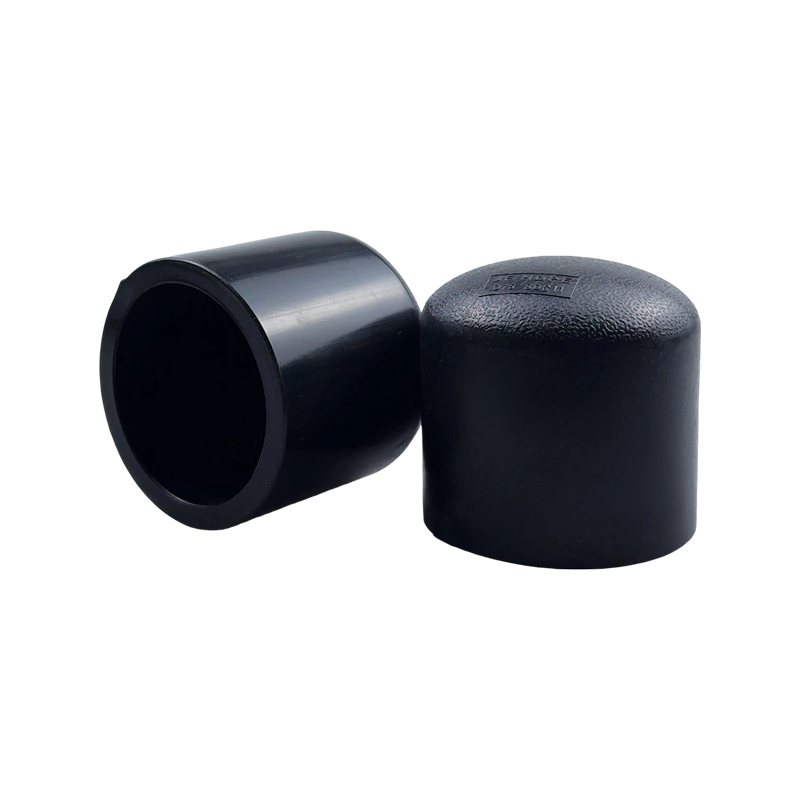

HDPE Butt Fusion End Cap

Product Overview

The HDPE Butt Fusion End Cap is designed to close the end of an HDPE pipeline and provide a secure termination for compatible piping systems. It is butt-fused directly to the pipe, creating a permanent welded connection without additional mechanical sealing components.

Manufactured from PE100 polyethylene, the end cap provides good resistance to chemical corrosion and salt exposure, together with the flexibility and impact resistance of HDPE. Its compact design and welded connection make it a practical choice for permanent pipeline termination in water, drainage, and other compatible HDPE systems. The HDPE Butt Fusion End Cap can be selected according to the pressure configuration and requirements of the pipeline system.

The product is available in PN1.0, PN1.25, and PN1.6 pressure configurations depending on the selected specification.

Category: Butt Fusion Fittings Prev: No previous article Next: HDPE Butt Fusion Reducing Cross

Description Contact Us

Product Description:

Applications

The HDPE Butt Fusion End Cap is used where an HDPE pipeline needs to be securely closed or terminated, including:

Water Supply & Distribution — for closing the ends of HDPE water supply pipelines.

Drainage Systems — for terminating compatible HDPE drainage pipelines and reserved pipeline sections.

Pipeline Installation — for permanently closing unused or planned pipeline ends during installation.

Agricultural Irrigation — for terminating irrigation pipeline sections and distribution lines.

Industrial Piping — for compatible HDPE piping systems requiring a permanent pipe-end closure.

Key Features

End Cap Design — provides a dedicated solution for closing HDPE pipe ends.

Butt Fusion Connection — creates a permanent welded connection with compatible HDPE pipes.

PE100 Material — offers good resistance to chemical corrosion and salt exposure, together with the flexibility of polyethylene.

Secure Pipeline Termination — helps provide a reliable closure without relying on conventional mechanical threads or sealing components.

Multiple Pressure Options — available in PN1.0, PN1.25, and PN1.6 configurations according to product specification.

Injection-Molded Construction — supports consistent fitting geometry and production quality.

OEM / ODM / OBM Support — available for customized product configurations and private-label sourcing.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
D75			✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
D90			✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
D110		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
D125		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
D160		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
D200		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
D250		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
D315	✓		✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, engineering contractors, pipeline suppliers, and brand customers. Product configurations can be supplied according to pipe dimensions, pressure requirements, connection requirements, and project specifications.
