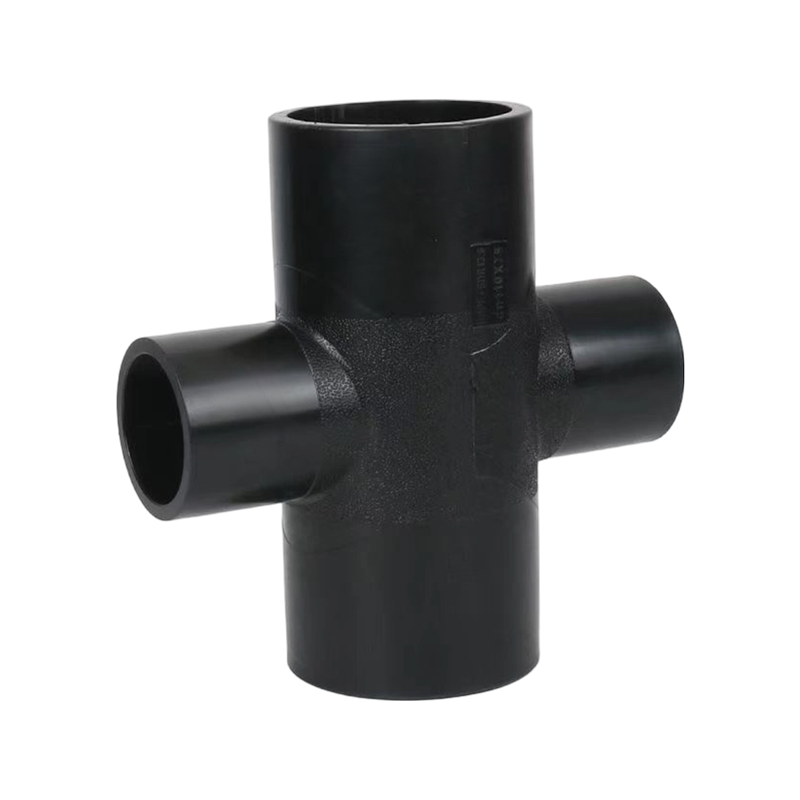

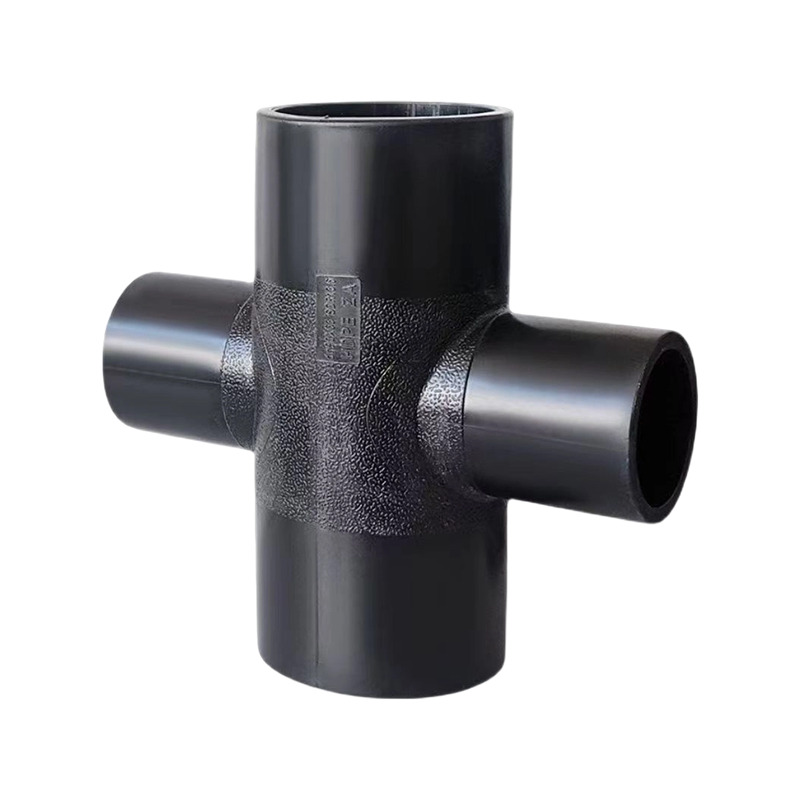

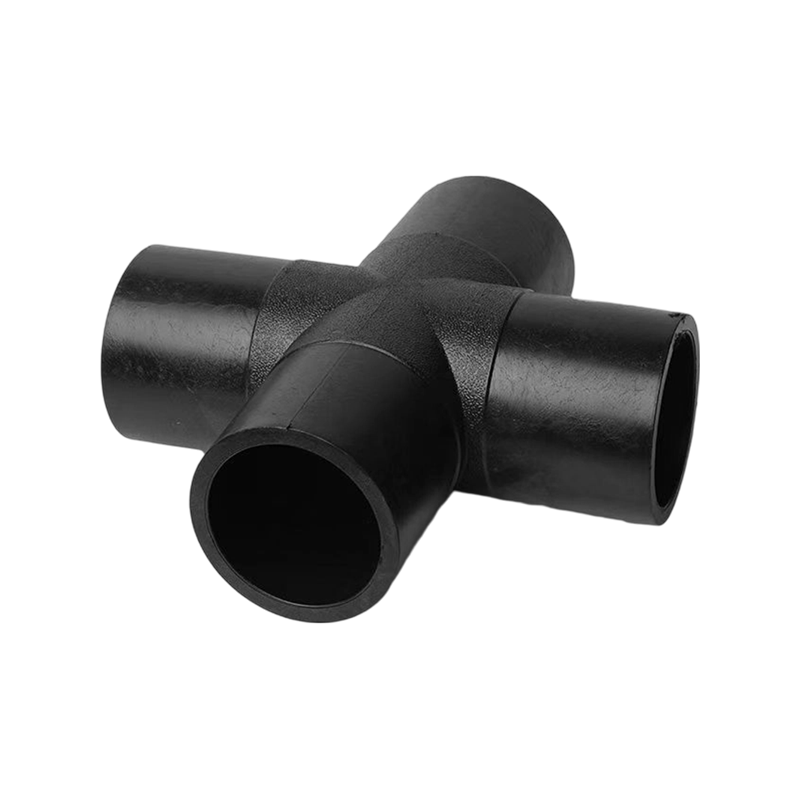

HDPE Butt Fusion Reducing Cross

Product Overview

The HDPE Butt Fusion Reducing Cross is designed to create four-way branch connections between HDPE pipes with different nominal diameters. It provides a practical way to divide or redirect flow within pipeline systems while connecting different pipe sizes at the same junction.

Manufactured from PE100 polyethylene, the fitting combines good chemical and salt resistance with the flexibility and impact resistance of HDPE. Butt fusion welding creates permanent connections with compatible HDPE pipes, helping provide secure and leak-resistant joints for long-term pipeline service. The HDPE Butt Fusion Reducing Cross is suitable for compatible water supply, drainage, irrigation, and other HDPE pipeline applications where different pipe diameters need to be connected.

Available in selected PN1.25 and PN1.6 configurations, the fitting can be selected according to the specific product specification.

Category: Butt Fusion Fittings Prev: HDPE Butt Fusion End Cap Next: HDPE Butt Fusion Equal Cross

Description Contact Us

Product Description:

Applications

The HDPE Butt Fusion Reducing Cross is suitable for pipeline systems requiring four-way connections with different pipe diameters, including:

Water Supply & Distribution — for routing and branching HDPE water pipelines with different pipe sizes.

Drainage Systems — for compatible drainage networks requiring multiple pipeline branches.

Agricultural Irrigation — for irrigation systems where different pipe diameters need to be connected at a common junction.

Pipeline Infrastructure — for municipal and engineering pipeline layouts with multiple branch directions.

Industrial Piping — for compatible HDPE piping systems requiring four-way connections between different pipe sizes.

Key Features

Reducing Cross Configuration — connects HDPE pipes with different nominal diameters at a four-way junction.

Four-Way Branching — provides a practical connection solution for complex pipeline layouts.

Butt Fusion Connection — enables permanent welded connections with compatible HDPE pipes.

PE100 Material — provides good resistance to chemical corrosion and salt exposure, together with HDPE flexibility and impact resistance.

Multiple Pressure Options — available in selected PN1.25 and PN1.6 configurations according to product specification.

Consistent Fitting Geometry — manufactured for reliable alignment and connection during pipeline installation.

OEM / ODM / OBM Support — available for customized product configurations and private-label sourcing.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
+90*63		✓		PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+110*50		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+110*63		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+110*75				PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+110*90		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+160*63		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+160*75		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+160*90		✓		PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+160*110		✓		PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+200*110		✓		PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+200*160		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+280*200		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, engineering contractors, pipeline suppliers, and brand customers. Product configurations can be supplied according to pipe dimensions, pressure requirements, connection requirements, and project specifications.
