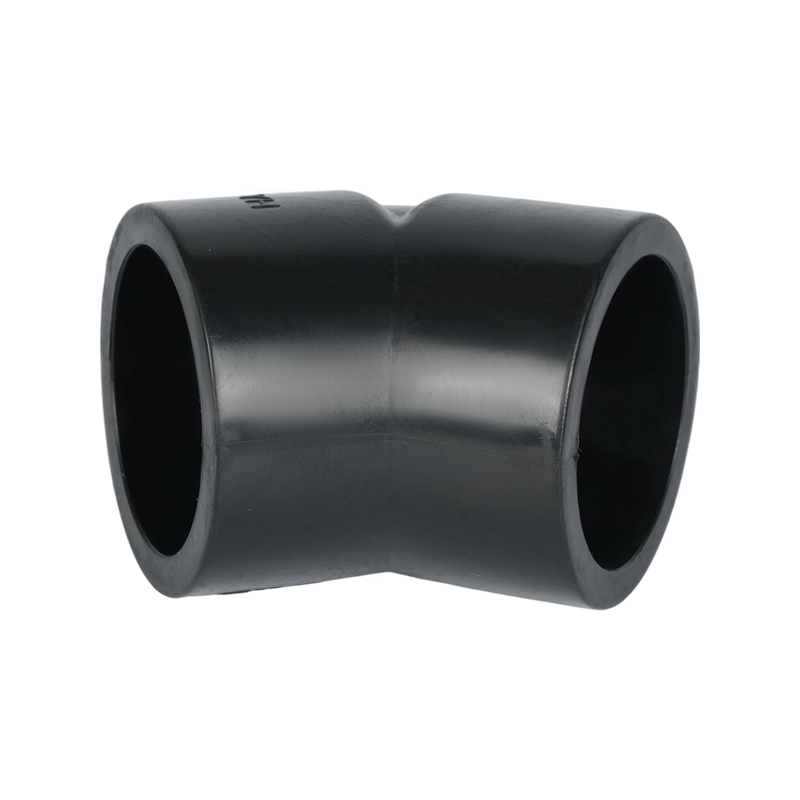

HDPE Socket Fusion 45 Degree Elbow

Product Overview

The HDPE Socket Fusion 45 Degree Elbow is designed to change the direction of an HDPE pipeline by 45 degrees while maintaining a socket fusion connection at both ends. It provides a compact solution for pipeline layouts where a gradual directional change is required.

Made from PE100 polyethylene, the elbow offers good corrosion resistance, impact resistance, and long-term durability. Both socket ends are designed for heat fusion with compatible HDPE pipes, creating a secure fused connection without threaded or metal connection components. The HDPE Socket Fusion 45 Degree Elbow is suitable for water supply, irrigation, building water, and other compatible HDPE piping applications.

Category: Socket Fusion Fittings Prev: HDPE Socket Fusion End Cap Next: No next article

Description Contact Us

Product Description:

Applications

Water Supply Systems — for changing the direction of HDPE water pipelines by 45 degrees.

Irrigation Systems — for routing HDPE irrigation pipelines around structures and changes in pipeline layout.

Building Water Systems — suitable for HDPE service piping where a 45-degree directional change is required.

General Fluid Piping — for compatible HDPE pipeline systems requiring compact directional connections.

Key Features

45-Degree Direction Change — provides a gradual change in pipeline direction for flexible system layouts.

Socket Fusion Connection — both ends are connected to compatible HDPE pipe using the socket fusion process.

PE100 Material — offers good resistance to corrosion, impact, and long-term environmental exposure.

All-Polyethylene Construction — avoids metal connection components at the fitting and maintains the corrosion-resistant properties of HDPE piping.

Compact Configuration — suitable for installations where a 45-degree turn is preferred over a sharper 90-degree change.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
L20*45°			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L25*45°			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L32*45°			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L40*45°			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L50*45°			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L63*45°			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L75*45°			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L90*45°			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L110*45°			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, pipe fitting suppliers, engineering contractors, and private-label brands. Product sizes, configurations, packaging, and other requirements can be customized according to customer and project specifications.
