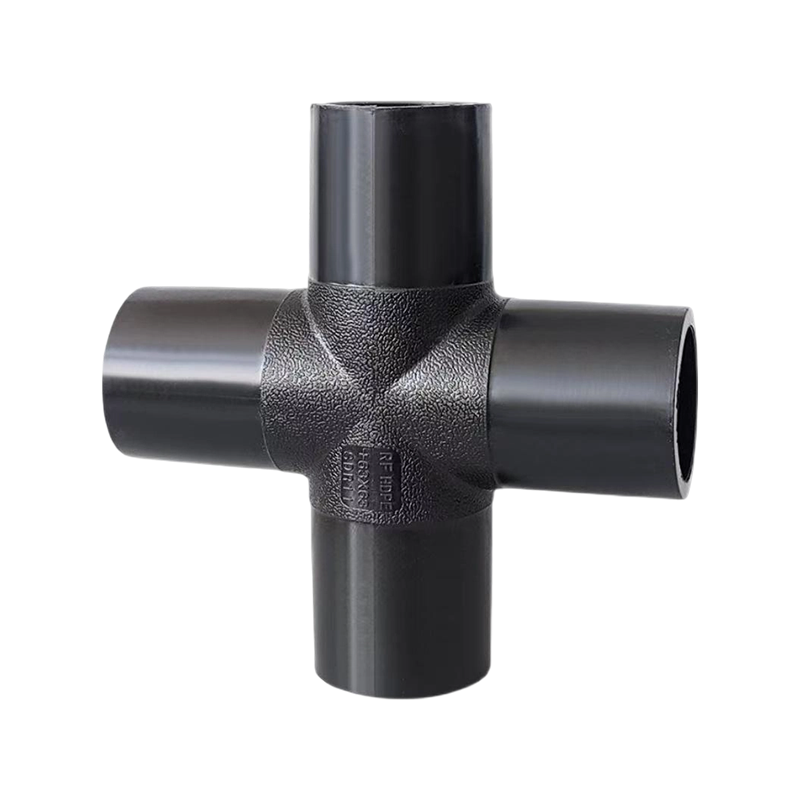

HDPE Butt Fusion Equal Cross

Product Overview

The HDPE Butt Fusion Equal Cross is designed to create four-way branch connections in HDPE pipeline systems. Its equal configuration allows four pipes of the same nominal diameter to be connected at a single junction, making it suitable for pipeline layouts that require multiple flow branches.

Manufactured from PE100 polyethylene, the fitting offers good resistance to chemical corrosion and salt exposure, together with the flexibility and impact resistance of HDPE. Butt fusion welding creates a permanent connection between the fitting and compatible HDPE pipes, providing a secure and leak-resistant joint. The HDPE Butt Fusion Equal Cross is suitable for compatible water supply, drainage, and other HDPE pipeline applications.

The fitting is available in PN1.25 and PN1.6 pressure configurations according to the selected specification.

Category: Butt Fusion Fittings Prev: HDPE Butt Fusion Reducing Cross Next: HDPE Butt Fusion Reducing Tee

Description Contact Us

Product Description:

Applications

The HDPE Butt Fusion Equal Cross is suitable for pipeline systems requiring four-way connections, including:

Water Supply & Distribution — for dividing or routing water pipelines in multiple directions.

Drainage Systems — for compatible drainage networks requiring four-way pipeline connections.

Pipeline Infrastructure — for municipal and engineering pipeline layouts with multiple branch directions.

Industrial Piping — for compatible HDPE systems requiring a four-way connection point.

Agricultural Irrigation — for irrigation networks where multiple pipeline branches are required.

Key Features

Equal Cross Configuration — connects four HDPE pipes of the same nominal diameter at one junction.

Four-Way Connection — provides a practical solution for pipeline layouts requiring multiple flow directions.

Butt Fusion Connection — designed for permanent welded connection with compatible HDPE pipes.

PE100 Material — offers good chemical corrosion resistance, salt resistance, flexibility, and impact resistance.

Multiple Pressure Options — available in PN1.25 and PN1.6 configurations according to product specification.

Injection-Molded Construction — supports consistent fitting geometry and production quality.

OEM / ODM / OBM Support — available for customized product configurations and private-label sourcing.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
+110		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+160		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+200		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings
+280		✓	✓	PE100 grade, polyethylene	Docking pipe fittings	Hot melt docking connection of pipes and fittings

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, engineering contractors, pipeline suppliers, and brand customers. Product configurations can be supplied according to pipe dimensions, pressure requirements, connection requirements, and project specifications.
