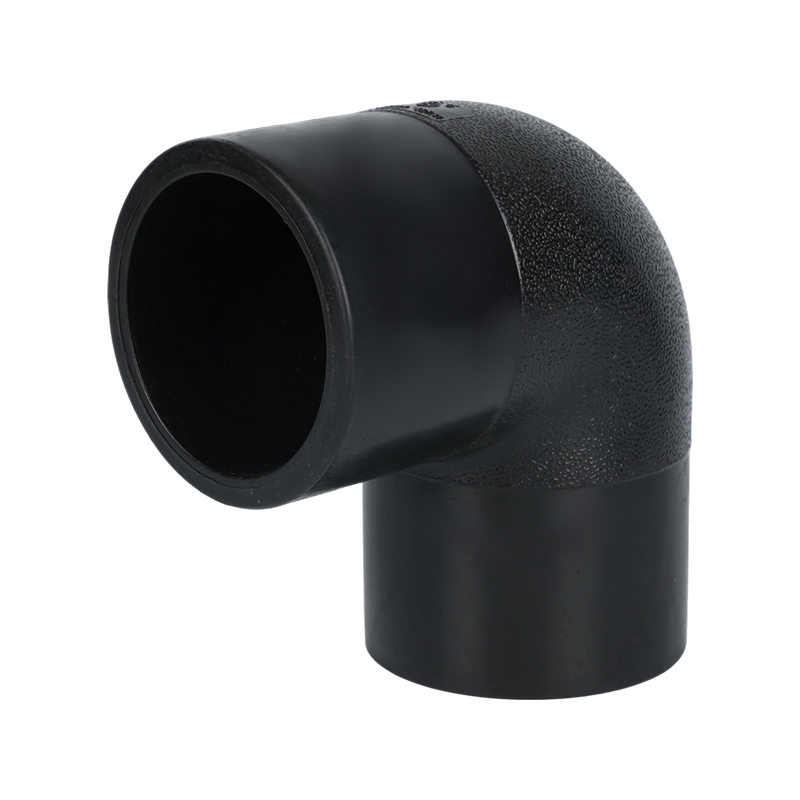

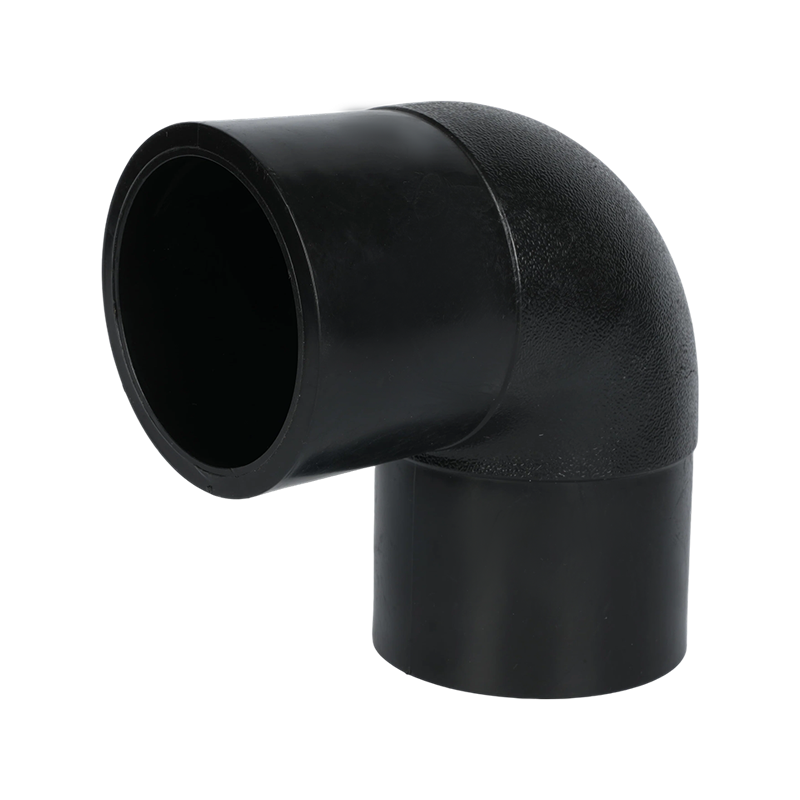

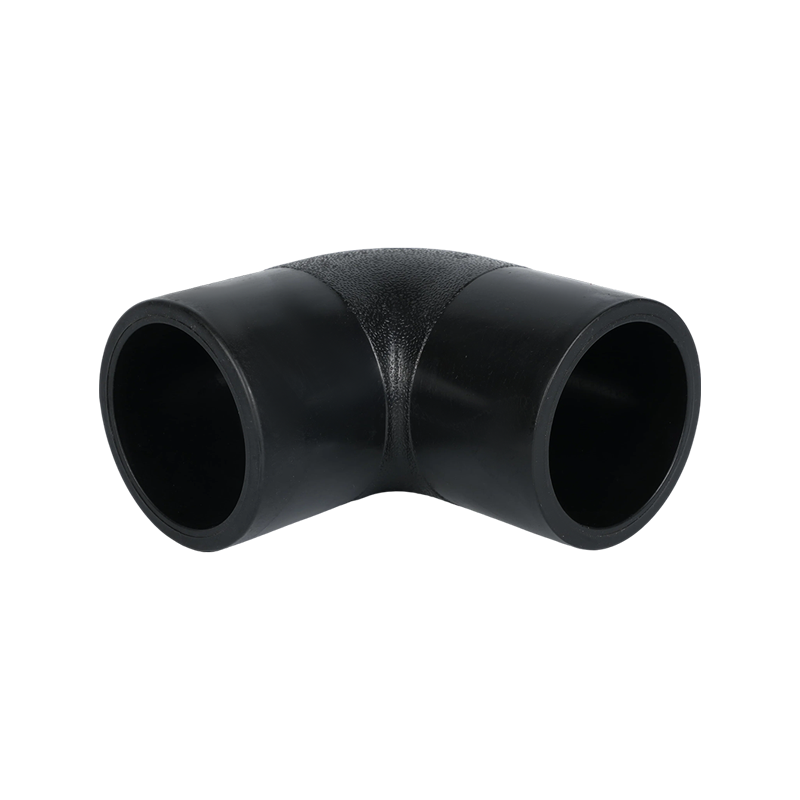

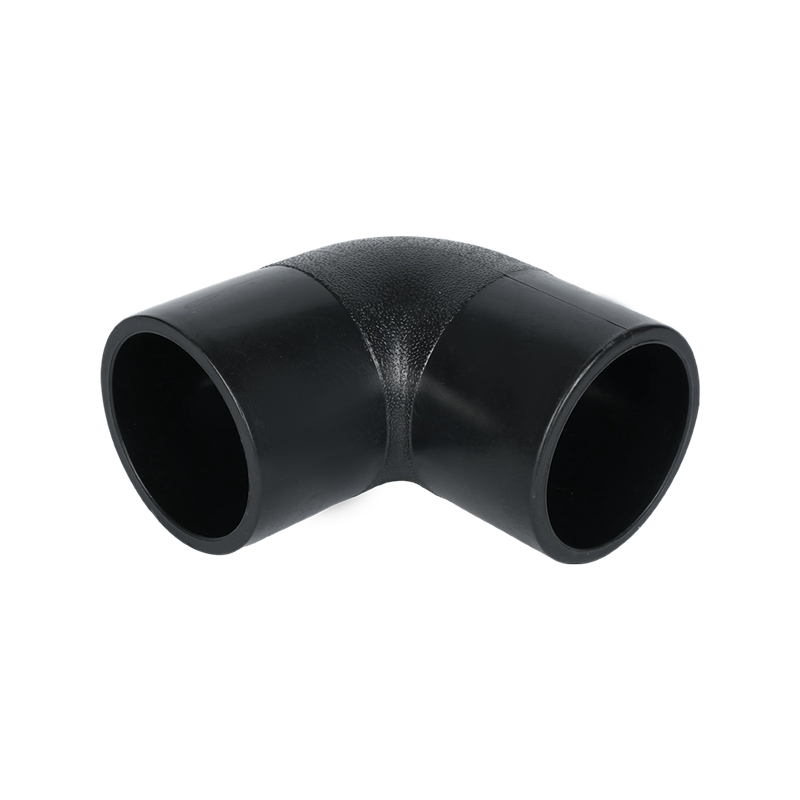

HDPE Butt Fusion 90 Degree Elbow

Product Overview

The HDPE Butt Fusion 90 Degree Elbow is designed to change the direction of an HDPE pipeline by 90 degrees while maintaining a reliable butt fusion connection. It provides a practical solution for routing pipelines around structural obstacles, equipment, or changes in pipeline layout.

Manufactured from PE100 polyethylene, the fitting combines the flexibility of polyethylene with strong resistance to chemical corrosion and salt exposure. The butt fusion connection creates a permanent welded joint with compatible HDPE pipes, providing reliable integration within HDPE pipeline systems. The HDPE Butt Fusion 90 Degree Elbow is suitable for compatible water supply, drainage, heating, HVAC and refrigeration, and natural gas piping applications.

The product range covers different pressure configurations depending on the model, allowing buyers to select a suitable specification according to pipeline design, operating pressure, and project requirements.

Contact Us
Category: Butt Fusion Fittings Prev: HDPE Butt Fusion Reducing Tee Next: HDPE Butt Fusion 45 Degree Elbow
Description Contact Us
Product Description:

Applications

The HDPE Butt Fusion 90 Degree Elbow is suitable for pipeline systems requiring a 90-degree directional change, including:

Water Supply & Distribution — for changing the routing of HDPE water supply pipelines.

Drainage Systems — for compatible drainage networks requiring a 90-degree change in direction.

Heating Systems — for compatible HDPE piping configurations.

HVAC & Refrigeration — for compatible HDPE pipeline layouts requiring a right-angle directional change.

Natural Gas Piping — for compatible applications where the fitting and complete piping system meet applicable requirements.

Key Features

90° Elbow Design — provides a right-angle change in pipeline direction for practical pipeline routing.

Butt Fusion Connection — creates a permanent welded joint with compatible HDPE pipes.

PE100 Material — combines polyethylene flexibility with resistance to chemical corrosion and salt exposure.

Multiple Pressure Configurations — pressure availability varies by model to support different pipeline requirements.

Reliable Pipeline Integration — designed for compatible HDPE piping systems and butt fusion installation.

OEM / ODM / OBM Support — available for customized product configurations and private-label sourcing.

Product Specifications:
Product Model PN1.0 PN1.25 PN1.6 Material Pipe Fitting Type Connection Method
L63 ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L75 ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L90 ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L110 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L125 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L140 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L160 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L180 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L200 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L225 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L250 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L280 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L315 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L355 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L400 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L500 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, engineering contractors, and brand customers. Product configurations can be discussed according to project specifications, pressure requirements, and sourcing needs.

FAQ:

What is an HDPE Butt Fusion 90 Degree Elbow used for?

It is used to create a 90-degree change in direction within a compatible HDPE pipeline system.

How is the 90-degree elbow connected to an HDPE pipe?

The fitting is designed for butt fusion welding with compatible HDPE pipes using suitable fusion equipment and the applicable installation procedure.

What material is the elbow made from?

The fitting is manufactured from PE100 polyethylene, providing flexibility together with resistance to chemical corrosion and salt exposure.

Are all models available with the same pressure rating?

No. Pressure availability varies by model. The appropriate model and PN rating should be selected according to the specific pipeline design and operating requirements.

What types of pipeline systems can use this elbow?

It can be used in compatible HDPE systems for water supply, drainage, heating, HVAC and refrigeration, and natural gas applications, subject to the requirements of the complete piping system.

Can the HDPE Butt Fusion 90 Degree Elbow be customized?

Yes. We support OEM, ODM, and OBM requirements for customized product configurations and private-label sourcing.
