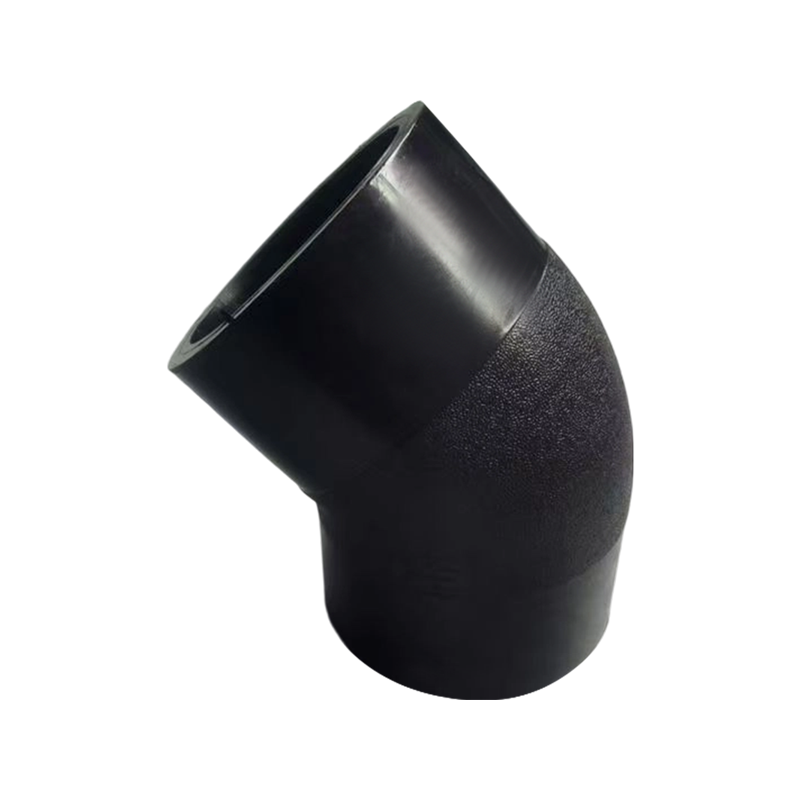

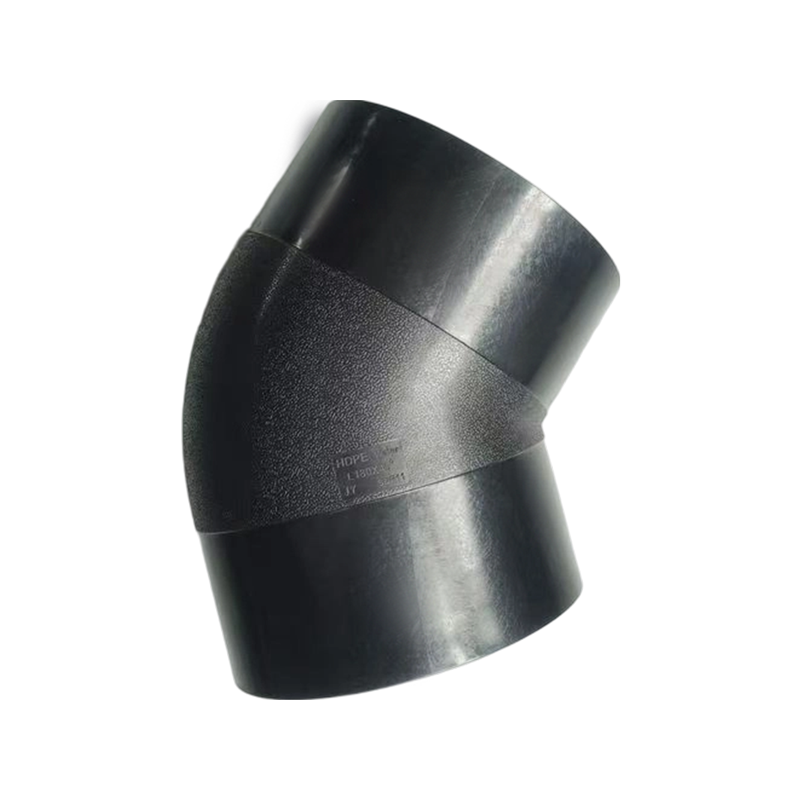

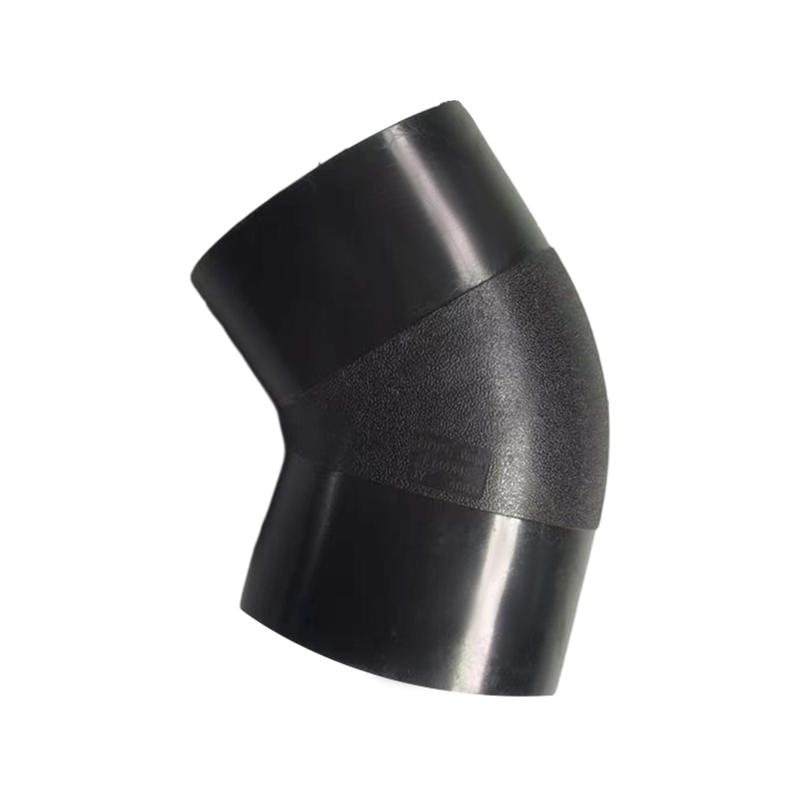

HDPE Butt Fusion 45 Degree Elbow

Product Overview

The HDPE Butt Fusion 45 Degree Elbow is designed to change the direction of an HDPE pipeline by 45 degrees while maintaining a reliable butt fusion connection. It provides a practical solution for routing pipelines around structural or layout constraints without requiring a sharp 90-degree directional change.

Manufactured from PE100 polyethylene, the fitting combines the flexibility of polyethylene with strong resistance to chemical corrosion and salt exposure. The HDPE Butt Fusion 45 Degree Elbow creates a permanent welded joint with compatible HDPE pipes, supporting reliable pipeline installation and long-term service.

With multiple pressure configurations available across the product range, the fitting can be selected according to pipeline design requirements and operating conditions. It is suitable for compatible water supply, drainage, heating, HVAC and refrigeration, and natural gas piping applications.

Contact Us
Category: Butt Fusion Fittings Prev: HDPE Butt Fusion 90 Degree Elbow Next: HDPE Butt Fusion 22.5 Degree Elbow
Description Contact Us
Product Description:

Applications

The HDPE Butt Fusion 45 Degree Elbow is suitable for pipeline systems requiring a 45-degree directional change, including:

Water Supply & Distribution — for routing HDPE water supply pipelines around changes in direction.

Drainage Systems — for compatible drainage pipeline layouts requiring a 45-degree directional change.

Heating Systems — for compatible HDPE piping configurations.

HVAC & Refrigeration — for compatible pipeline layouts requiring directional adjustment.

Natural Gas Piping — for compatible applications where the fitting and complete piping system meet applicable requirements.

Key Features

45° Elbow Design — provides a controlled change in pipeline direction while avoiding a sharper 90-degree turn.

Butt Fusion Connection — creates a permanent welded joint with compatible HDPE pipes.

PE100 Material — combines polyethylene flexibility with resistance to chemical corrosion and salt exposure.

Multiple Pressure Configurations — supports different pressure requirements across the product range.

Reliable Pipeline Integration — designed for compatible HDPE piping systems and butt fusion installation.

OEM / ODM / OBM Support — available for customized product configurations and private-label sourcing.

Product Specifications:
Product Model PN1.0 PN1.25 PN1.6 Material Pipe Fitting Type Connection Method
L63*45 ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L75*45 ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L90*45 ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L110*45 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L125*45 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L140*45 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L160*45 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L200*45 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L225*45 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L250*45 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L280*45 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L315*45 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L355*45 ✓ ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L400*45 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings
L500*45 ✓ ✓ PE100 grade, polyethylene Docking pipe fittings Hot melt docking connection of pipes and fittings

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, engineering contractors, and brand customers. Product configurations can be discussed according to project specifications, pressure requirements, and sourcing needs.

FAQ:

What is an HDPE Butt Fusion 45 Degree Elbow used for?

It is used to create a 45-degree change in direction within a compatible HDPE pipeline system.

What is the difference between a 45-degree and 90-degree elbow?

A 45-degree elbow provides a more gradual directional change, while a 90-degree elbow creates a sharper change in pipeline direction.

How is the elbow connected to an HDPE pipe?

The fitting is designed for butt fusion welding with compatible HDPE pipes using suitable fusion equipment and the applicable installation procedure.

What material is the elbow made from?

The fitting is manufactured from PE100 polyethylene, offering flexibility together with resistance to chemical corrosion and salt exposure.

Are all models available with the same pressure rating?

No. The available pressure configuration varies by model. The applicable PN rating should be selected according to the specific model and pipeline requirements.

Can the HDPE Butt Fusion 45 Degree Elbow be customized?

Yes. We support OEM, ODM, and OBM requirements for customized product configurations and private-label sourcing.
