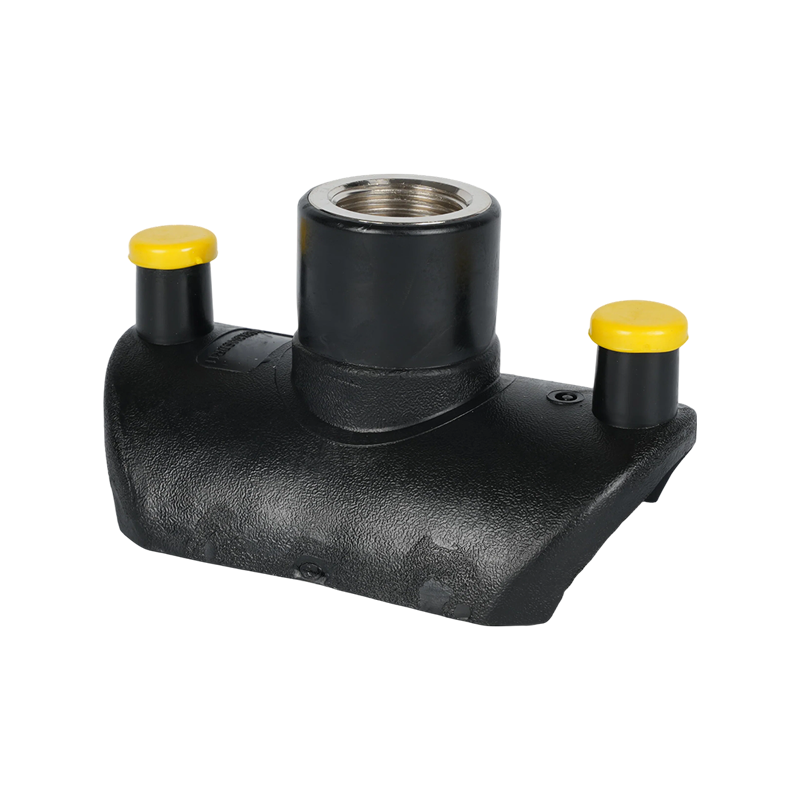

HDPE Electrofusion Female Threaded Saddle

Product Overview

The HDPE Electrofusion Female Threaded Saddle is designed to create a branch connection from an HDPE main pipeline while providing a female threaded outlet for compatible male-threaded components. The saddle is electrofusion welded to the main HDPE pipe, combining a secure branch connection with a threaded transition in one fitting.

Manufactured from PE100, the fitting provides good resistance to chemical corrosion and salt exposure together with the flexibility and impact resistance of polyethylene. The female threaded outlet provides a practical connection point for compatible valves, fittings, and other threaded pipeline components.

The HDPE Electrofusion Female Threaded Saddle is a threaded configuration within the broader HDPE Electrofusion Tapping Saddle product family and is suitable for compatible HDPE pipeline systems requiring a threaded branch outlet.

Category: Electrofusion Fittings Prev: HDPE Electrofusion Bypass Saddle Next: No next article

Description Contact Us

Product Description:

Applications

The HDPE Electrofusion Female Threaded Saddle is suitable for:

Water Supply & Distribution — for creating threaded branch outlets from HDPE water supply pipelines.

Agricultural Irrigation — for connecting irrigation branch lines and compatible threaded components.

Building Water Supply — for connecting HDPE pipelines to compatible threaded valves and fittings.

Drainage Systems — for compatible HDPE drainage applications requiring a threaded branch connection.

Pipeline Connections — for connecting an HDPE main pipeline to compatible male-threaded components.

Key Features

Saddle-Type Branch Design — provides a branch outlet directly from the HDPE main pipeline.

Electrofusion Connection — designed for electrofusion welding to compatible HDPE pipe.

Female Threaded Outlet — connects to compatible male-threaded valves, fittings, and other components.

PE100 Material — provides good chemical and salt resistance together with the flexibility and impact resistance of polyethylene.

Integrated Branch Connection — combines the saddle branch and threaded outlet in one fitting.

Reliable Fused Joint — forms an integrated connection with the main HDPE pipe when the appropriate electrofusion procedure is followed.

OEM / ODM / OBM Support — available for customized product configurations and private-label sourcing.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
63×1/2F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
63×3/4F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
63×1′F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
75×1/2F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
75×3/4F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
75×1′F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
90×1/2F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
90×3/4F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
90×1′F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
110×1/2F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
110×3/4F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection
110×1′F			✓	PE100 grade, polyethylene	Saddle shaped internal thread tee	On the supervisor's side, electric fusion saddle welding; Branch pipe side, threaded connection

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, engineering contractors, pipeline suppliers, and private-label brands. Customized product configurations can be supplied according to pipe dimensions, connection requirements, project specifications, and sourcing needs.
