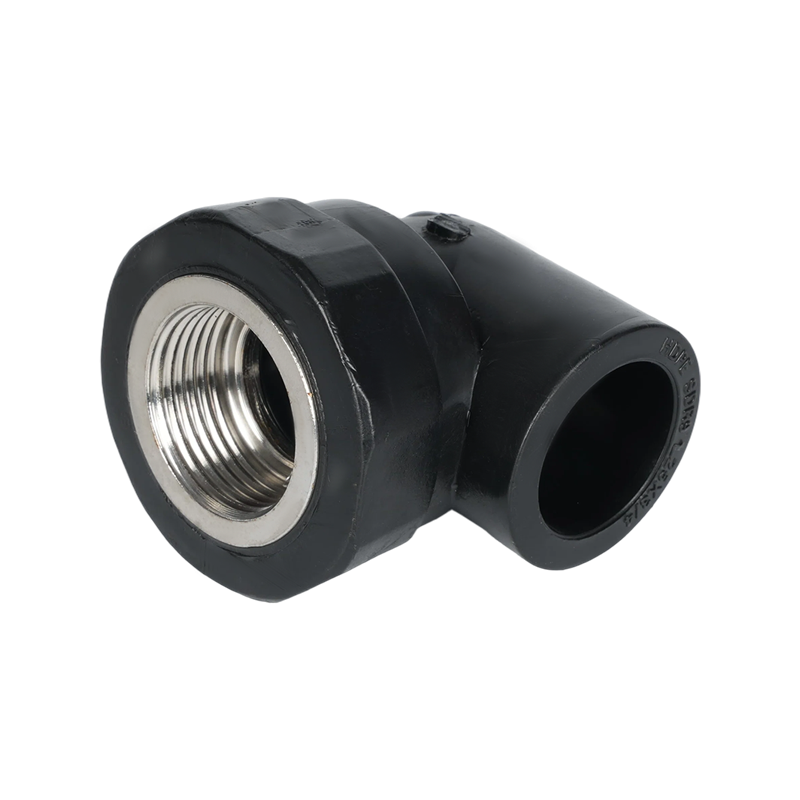

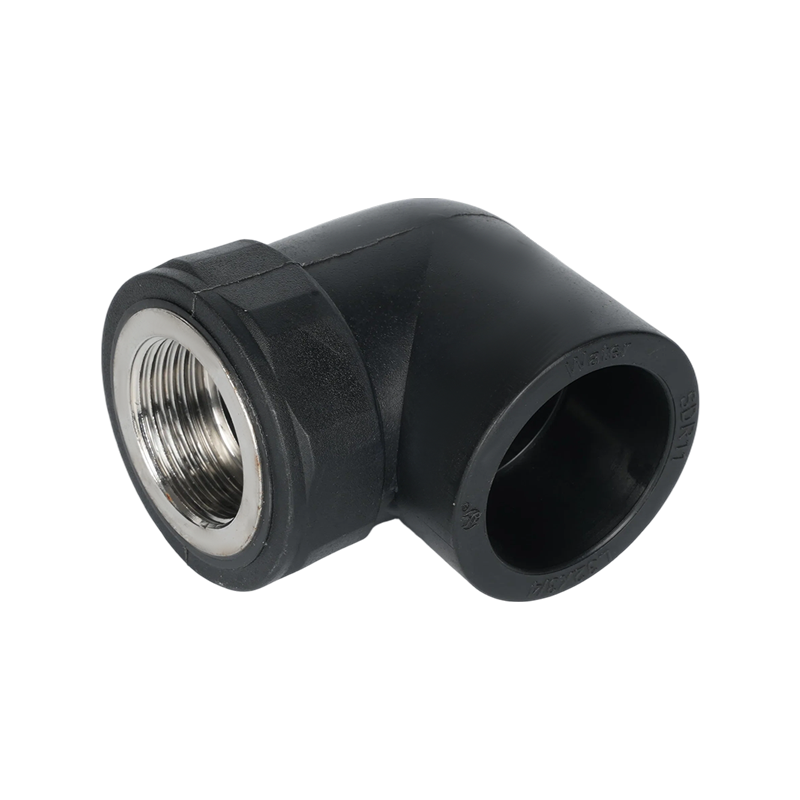

HDPE Female Threaded 90 Degree Elbow

Product Overview

The HDPE Female Threaded 90 Degree Elbow is designed to change the direction of an HDPE pipeline while providing a female threaded connection for compatible male-threaded components. It features a PE100 polyethylene body, a stainless steel female threaded section, and a socket fusion connection on the HDPE pipe side.

The 90-degree configuration provides a compact solution for directional changes and connections to threaded valves, fittings, taps, and other pipeline components.

Category: Threaded Fittings Prev: HDPE Female Threaded Adaptor Next: HDPE Female Threaded Tee

Description Contact Us

Product Description:

Applications

Water Supply Systems — for changing pipeline direction and connecting HDPE pipe to threaded valves or fittings.

Irrigation Systems — for connecting irrigation pipelines with threaded valves, taps, and other components.

Building Water Systems — for connecting HDPE service pipes to threaded plumbing components where a 90-degree change of direction is required.

Pipeline Connections — for transitioning between socket-fused HDPE pipe and compatible male-threaded components.

Key Features

Stainless Steel Female Thread — provides a durable threaded interface for compatible male-threaded components.

90-Degree Elbow Design — changes pipeline direction in a compact configuration.

Socket Fusion Connection — provides a secure fused connection between the fitting and HDPE pipe.

PE100 Body — offers good corrosion resistance, chemical resistance, and impact resistance.

HDPE-to-Thread Transition — simplifies connections between polyethylene piping and threaded components.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
L20*1/2F			✓	PE100 grade, polyethylene	Socket fittings	One end is connected by socket, and the other end is connected by a threaded connection
L25*1/2F			✓	PE100 grade, polyethylene	Socket fittings	One end is connected by socket, and the other end is connected by a threaded connection
L25*3/4F			✓	PE100 grade, polyethylene	Socket fittings	One end is connected by socket, and the other end is connected by a threaded connection
L32*1/2F			✓	PE100 grade, polyethylene	Socket fittings	One end is connected by socket, and the other end is connected by a threaded connection
L32*3/4F			✓	PE100 grade, polyethylene	Socket fittings	One end is connected by socket, and the other end is connected by a threaded connection
L32*1F			✓	PE100 grade, polyethylene	Socket fittings	One end is connected by socket, and the other end is connected by a threaded connection
L40*11/4F			✓	PE100 grade, polyethylene	Socket fittings	One end is connected by socket, and the other end is connected by a threaded connection
L50*11/2F			✓	PE100 grade, polyethylene	Socket fittings	One end is connected by socket, and the other end is connected by a threaded connection
L63*2F			✓	PE100 grade, polyethylene	Socket fittings	One end is connected by socket, and the other end is connected by a threaded connection

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, irrigation suppliers, engineering contractors, and private-label brands. Product configurations can be supplied according to pipe dimensions, thread specifications, pressure requirements, and project specifications.
