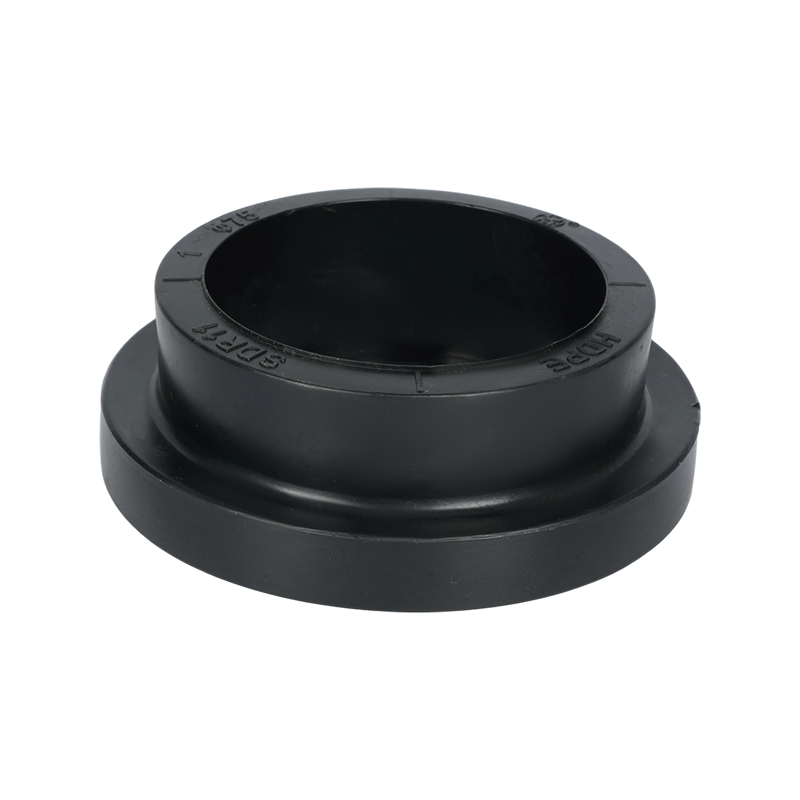

HDPE Socket Fusion Flange Adaptor

Product Overview

The HDPE Socket Fusion Flange Adaptor is designed to connect HDPE pipe to cast iron flanges, valves, and other flanged pipeline components. It combines a socket fusion connection on the HDPE side with a flange connection, providing a practical transition between HDPE piping and flanged components.

Made from PE100 polyethylene, the adaptor offers good corrosion resistance, impact resistance, and long-term durability. The HDPE pipe is heat-fused into the socket, while the flange side provides a bolted connection to compatible flanged components. The HDPE Socket Fusion Flange Adaptor is suitable for water supply, irrigation, building water, and other compatible pipeline systems.

Category: Socket Fusion Fittings Prev: HDPE Socket Fusion Equal Tee Next: HDPE Socket Fusion End Cap

Description Contact Us

Product Description:

Applications

Water Supply Systems — for connecting HDPE pipes to cast iron flanges, valves, and other flanged components.

Irrigation Systems — for connecting HDPE irrigation pipelines with flanged valves and equipment.

Building Water Systems — for transitioning between HDPE service pipes and flanged plumbing components.

Pipeline Connections — for applications requiring a socket-fused HDPE connection to a detachable flanged component.

Key Features

Socket Fusion Connection — provides a heat-fused connection between the HDPE pipe and fitting.

Flange Connection — allows connection to compatible cast iron flanges, valves, and other flanged components.

PE100 Material — offers good resistance to corrosion, impact, and long-term environmental exposure.

HDPE-to-Flange Transition — provides a direct transition between socket-fused HDPE pipe and flanged components.

Compact Fitting Design — combines the pipe connection and flange transition in one fitting.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
32			✓	PE100 grade, polyethylene	Socket fittings	One end is inserted into the pipe for socket connection, and the other end is connected with a cast iron flange
40			✓	PE100 grade, polyethylene	Socket fittings	One end is inserted into the pipe for socket connection, and the other end is connected with a cast iron flange
50			✓	PE100 grade, polyethylene	Socket fittings	One end is inserted into the pipe for socket connection, and the other end is connected with a cast iron flange
63			✓	PE100 grade, polyethylene	Socket fittings	One end is inserted into the pipe for socket connection, and the other end is connected with a cast iron flange
75			✓	PE100 grade, polyethylene	Socket fittings	One end is inserted into the pipe for socket connection, and the other end is connected with a cast iron flange
90			✓	PE100 grade, polyethylene	Socket fittings	One end is inserted into the pipe for socket connection, and the other end is connected with a cast iron flange
110			✓	PE100 grade, polyethylene	Socket fittings	One end is inserted into the pipe for socket connection, and the other end is connected with a cast iron flange

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, pipe fitting suppliers, engineering contractors, and private-label brands. Product sizes, configurations, packaging, and other requirements can be customized according to customer and project specifications.
