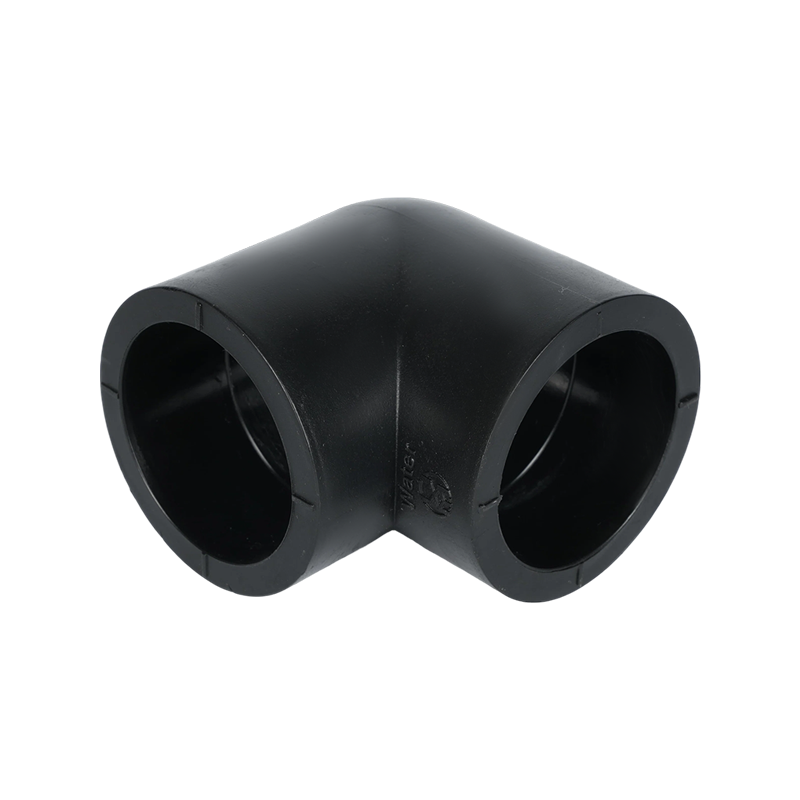

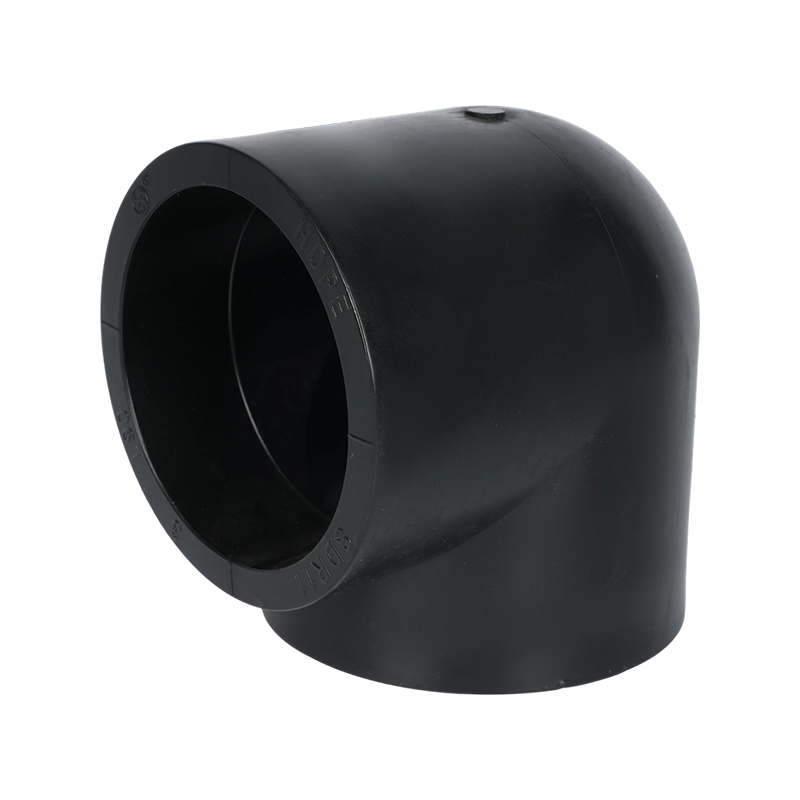

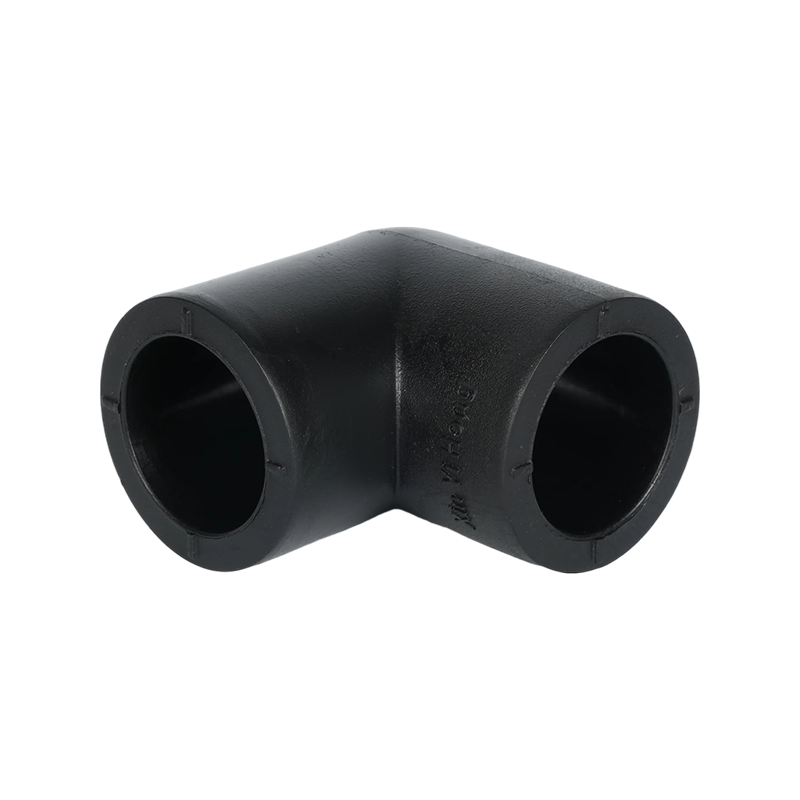

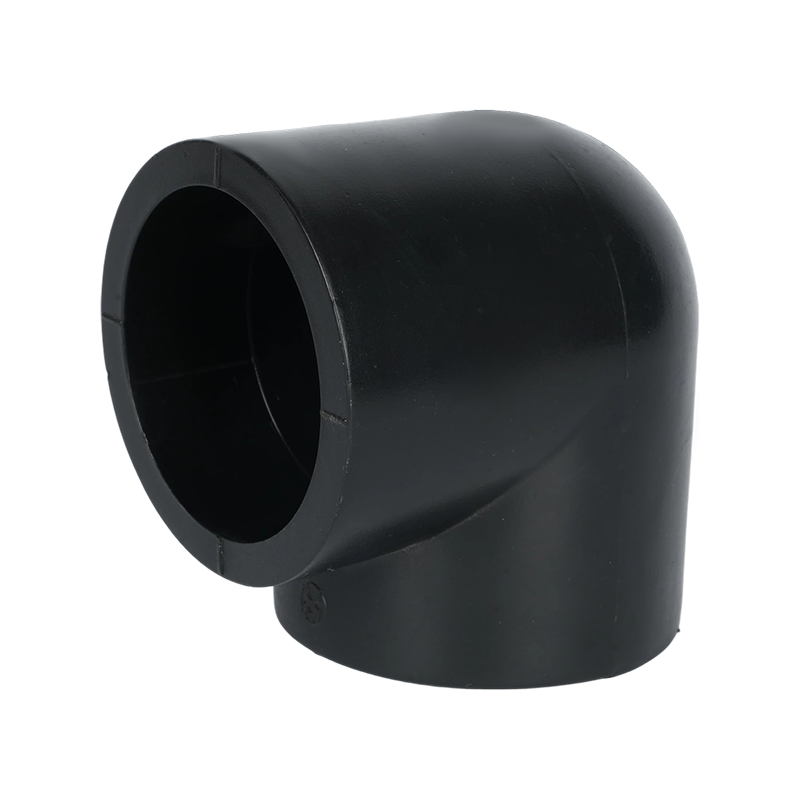

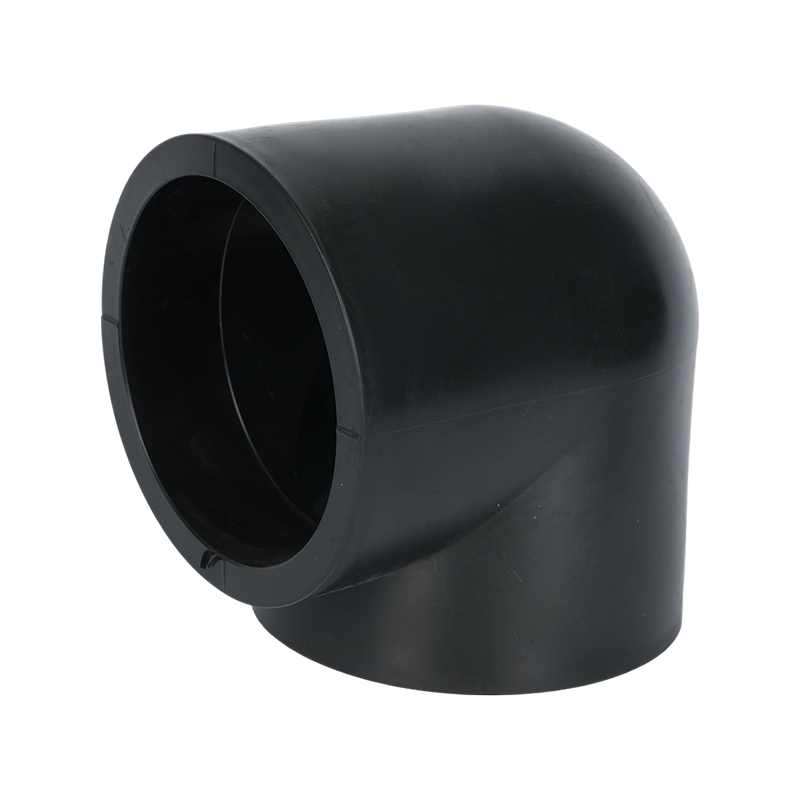

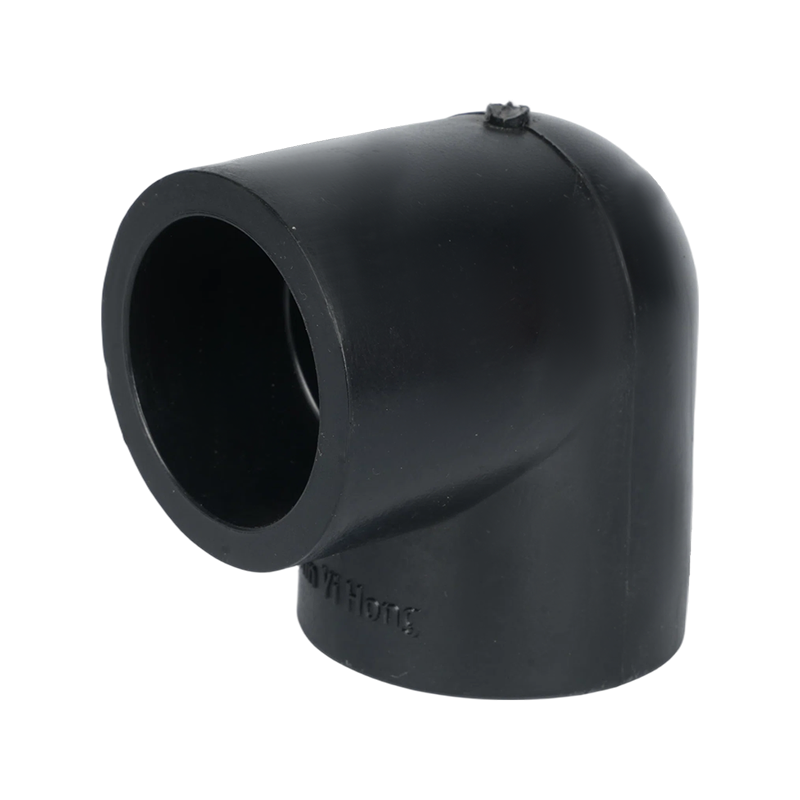

HDPE Socket Fusion 90 Degree Elbow

Product Overview

The HDPE Socket Fusion 90 Degree Elbow is designed to change the direction of an HDPE pipeline by 90 degrees while maintaining a socket fusion connection. It provides a practical solution for routing pipe around structures, equipment, and other installation constraints.

Manufactured from PE100 polyethylene, the fitting offers good resistance to chemical corrosion and salt exposure, together with the flexibility and impact resistance of HDPE. Its socket ends are designed for heat fusion with compatible HDPE pipes to form permanent, secure joints when properly installed.

The HDPE Socket Fusion 90 Degree Elbow is suitable for water supply, building water and drainage, heating systems, agricultural irrigation, and other compatible HDPE piping applications.

Category: Socket Fusion Fittings Prev: HDPE Socket Fusion Equal Coupler Next: HDPE Socket Fusion Reducing Tee

Description Contact Us

Product Description:

Applications

The HDPE Socket Fusion 90 Degree Elbow is suitable for:

Water Supply & Distribution — for changing pipeline direction in HDPE water supply systems.

Building Water & Drainage — for routing HDPE pipe around structures and installation constraints.

Heating Systems — for compatible HDPE heating pipeline layouts requiring a 90-degree direction change.

Agricultural Irrigation — for routing irrigation pipelines around buildings, equipment, and other obstacles.

Pipeline & Utility Systems — for compatible engineering applications requiring a compact 90-degree pipe connection.

Key Features

90 Degree Configuration — provides a controlled 90-degree change in pipeline direction.

Socket Fusion Connection — designed for heat fusion with compatible HDPE pipes.

PE100 Material — offers good chemical and salt resistance together with flexibility and impact resistance.

Permanent Fused Joint — forms an integrated pipe-to-fitting connection when properly installed.

Compact Design — helps simplify pipeline routing where installation space is limited.

Metric Configuration — suitable for compatible metric HDPE piping systems.

OEM / ODM / OBM Support — available for customized product configurations and private-label sourcing.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
L20			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L25			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L32			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L40			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L50			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L63			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L75			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L90			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L110			✓	PE100 grade, polyethylene	Socket fittings	Insert the pipe into the accessory and use hot melt socket

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, engineering contractors, pipeline suppliers, and brand customers. Product configurations can be supplied according to pipe dimensions, pressure requirements, connection requirements, and project specifications.
