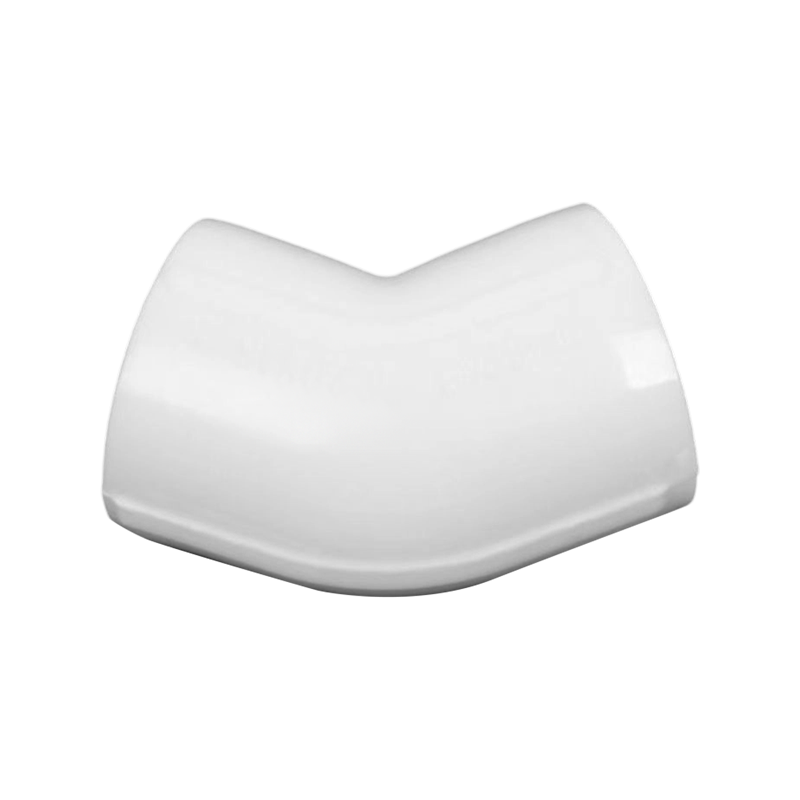

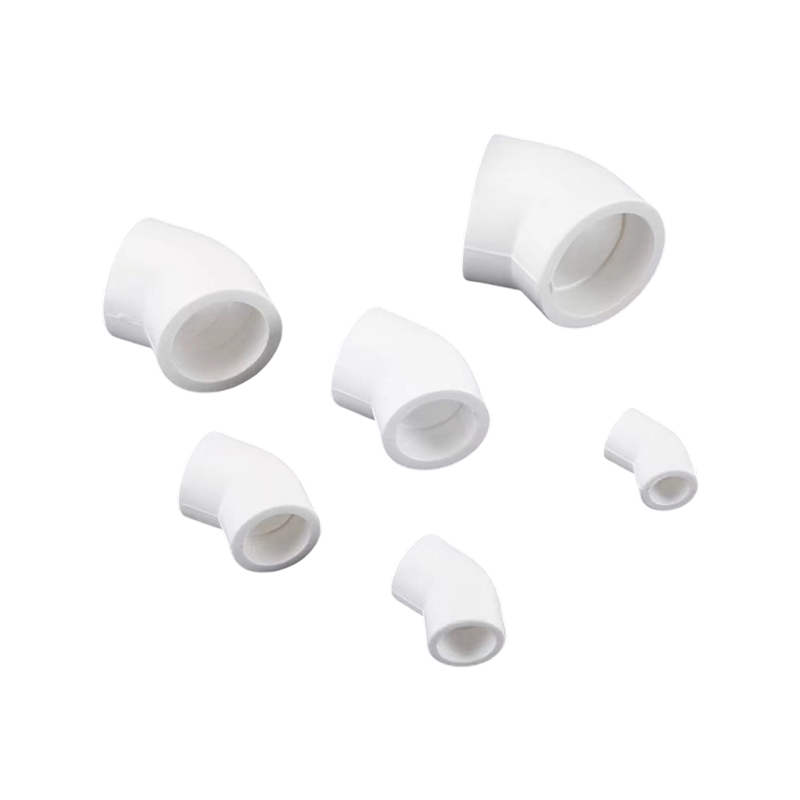

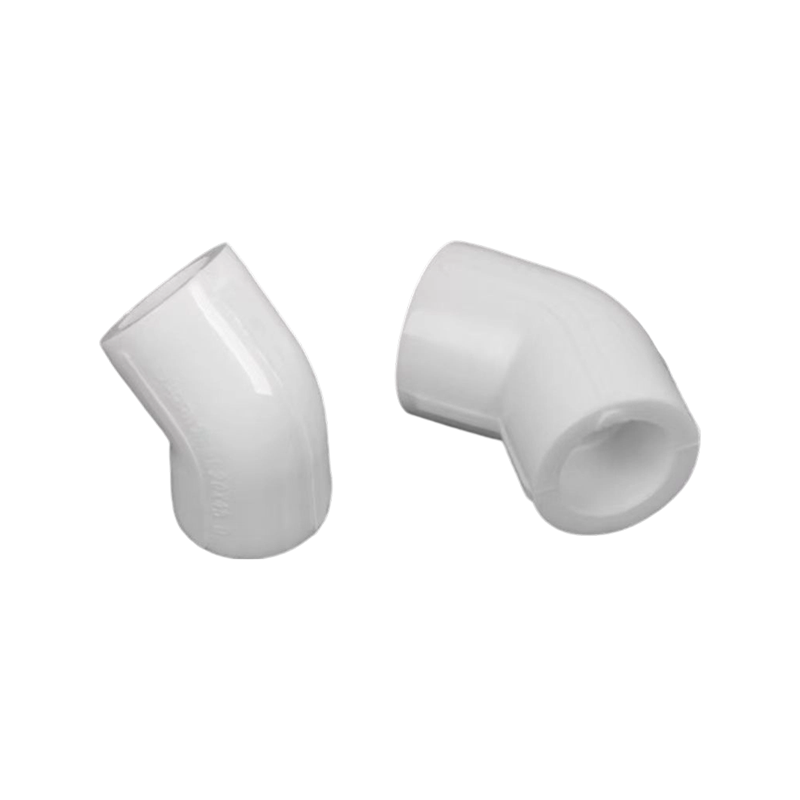

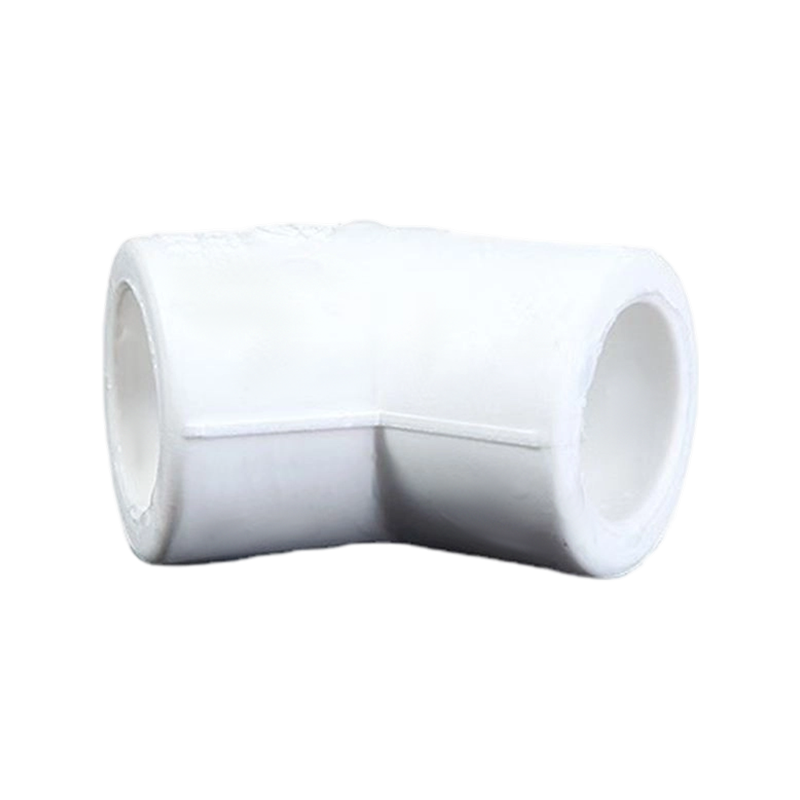

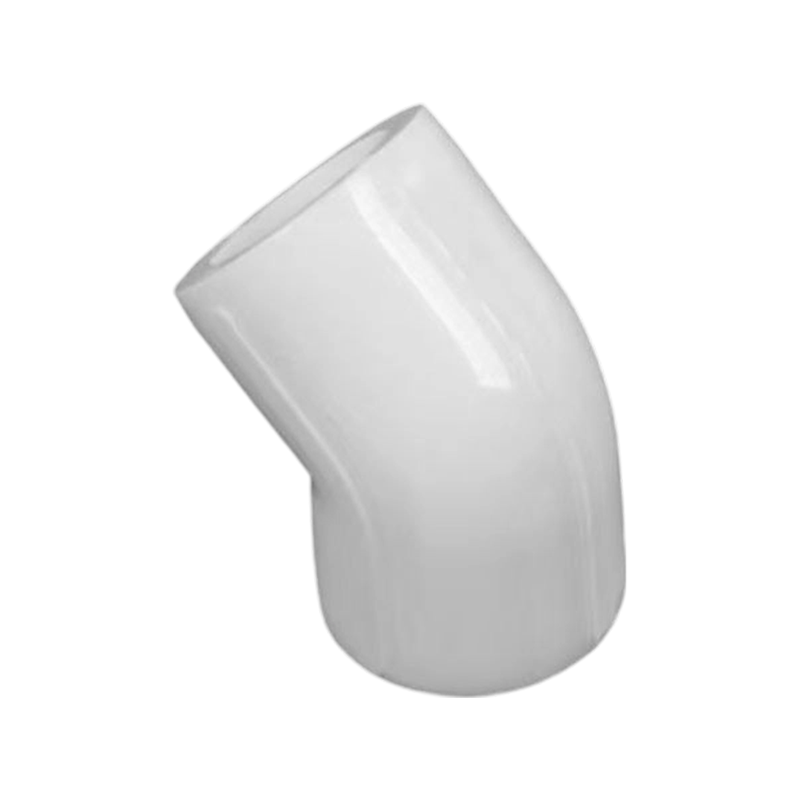

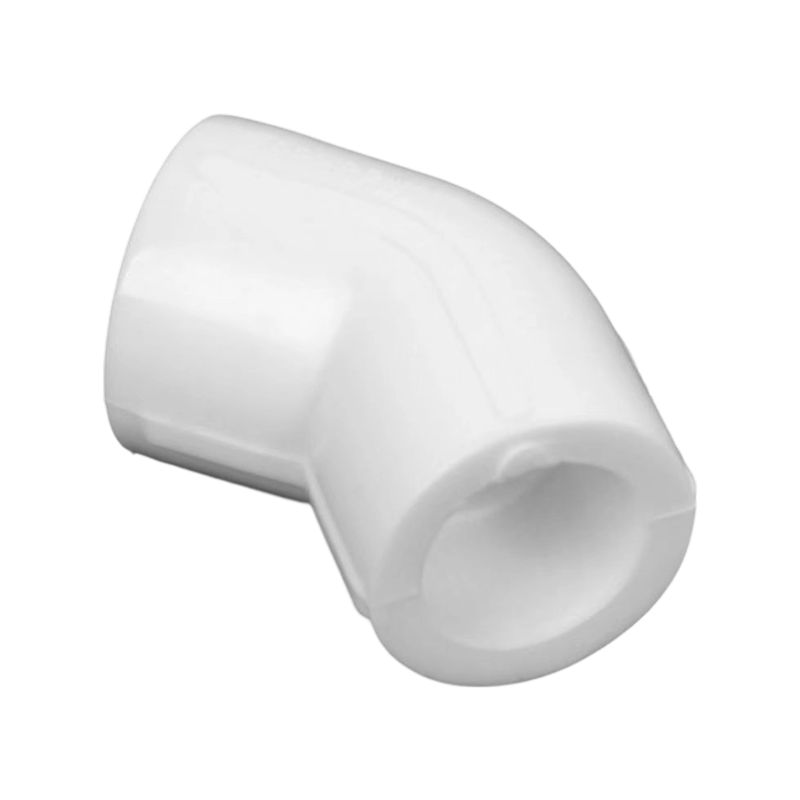

PPR 45 Degree Elbow

Product Overview

The PPR 45 Degree Elbow is a socket fusion pipe fitting made from polypropylene random copolymer (PP-R), designed to create a 45-degree change in direction in compatible PPR hot and cold water piping systems. Its angled configuration provides flexible pipeline routing while maintaining a clean and organized installation.

The fitting is connected by socket fusion, where the PPR pipe and fitting socket are heated and then joined together. After cooling, they form an integrated connection with reliable sealing performance. The smooth internal surface of PP-R helps reduce flow resistance and scale buildup, while its corrosion resistance and lightweight construction support installation in building water supply systems.

Category: Socket Fusion Fittings Prev: PPR 90 Degree Elbow Next: PPR Reducing Tee

Description Contact Us

Product Description:

Applications

Hot and Cold Water Systems — for 45-degree directional changes in compatible PPR water supply pipelines.

Residential Plumbing — for routing PPR pipes around walls, fixtures, and other installation obstacles.

Commercial Buildings — for water supply installations in apartments, hotels, schools, and other buildings.

Water Distribution Systems — for connecting PPR pipes where a 45-degree change in pipeline direction is required.

Key Features

PP-R Construction — made from polypropylene random copolymer, offering corrosion resistance, chemical resistance, and lightweight handling.

45-Degree Configuration — provides a gradual directional change for flexible pipeline routing.

Socket Fusion Connection — the pipe and fitting socket are heated and joined to form an integrated connection after cooling.

Reliable Joint Sealing — the fused connection provides reliable joint integrity and helps reduce leakage risk when properly installed.

Smooth Internal Surface — helps reduce water flow resistance and the tendency for scale buildup.

Temperature and Pressure Resistance — suitable for compatible PPR hot and cold water applications when matched with the appropriate pipe pressure rating.

Easy Installation — lightweight construction facilitates handling and installation compared with conventional metal fittings.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
L20*45°			✓	PPR	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L25*45°			✓	PPR	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L32*45°			✓	PPR	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L40*45°			✓	PPR	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L50*45°			✓	PPR	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L63*45°			✓	PPR	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L75*45°			✓	PPR	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L90*45°			✓	PPR	Socket fittings	Insert the pipe into the accessory and use hot melt socket
L110*45°			✓	PPR	Socket fittings	Insert the pipe into the accessory and use hot melt socket

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, plumbing suppliers, engineering contractors, water system installers, and private-label brands. Product configurations, packaging, and order quantities can be customized according to customer requirements and project needs.
