PP Branch Saddle

Product Overview

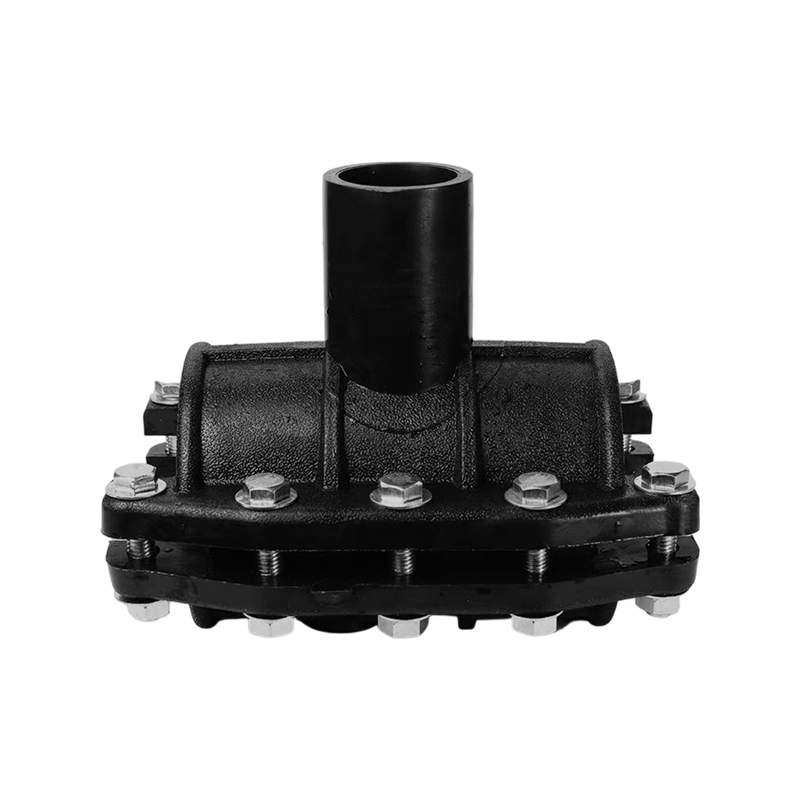

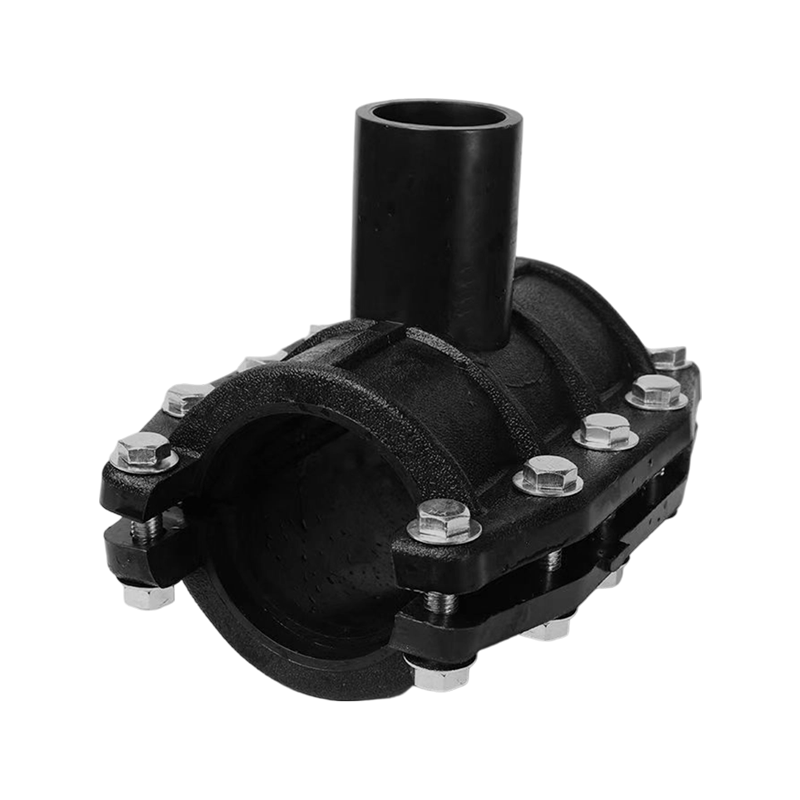

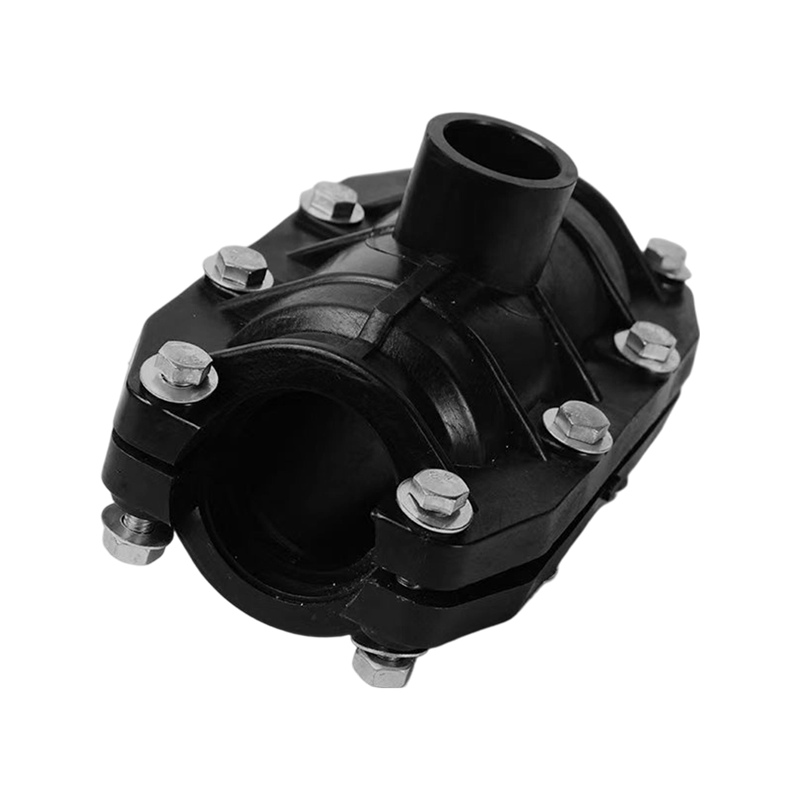

The PP Branch Saddle is a two-piece clamp fitting designed to create branch connections on compatible piping systems. Manufactured from polypropylene, the saddle consists of two fitting halves that clamp around the main pipe, while the outlet provides a connection point for a branch pipe.

This branch saddle provides a practical solution for adding branch connections to existing pipelines without replacing the main pipe section. Its clamp-type construction allows the fitting to be positioned around the main pipe and secured for branch pipeline installation.

Contact Us
Category: Pipe Repair Fittings Prev: No previous article Next: PP Pipe Repair Clamp
Description Contact Us
Product Description:

Applications

Water Supply Systems — for creating branch connections from compatible main pipelines.

Irrigation Systems — for adding branch outlets to irrigation distribution pipelines.

Pipeline Distribution — for connecting additional branch lines to existing pipeline networks.

Industrial Piping — for compatible fluid-handling systems requiring additional branch connections.

Key Features

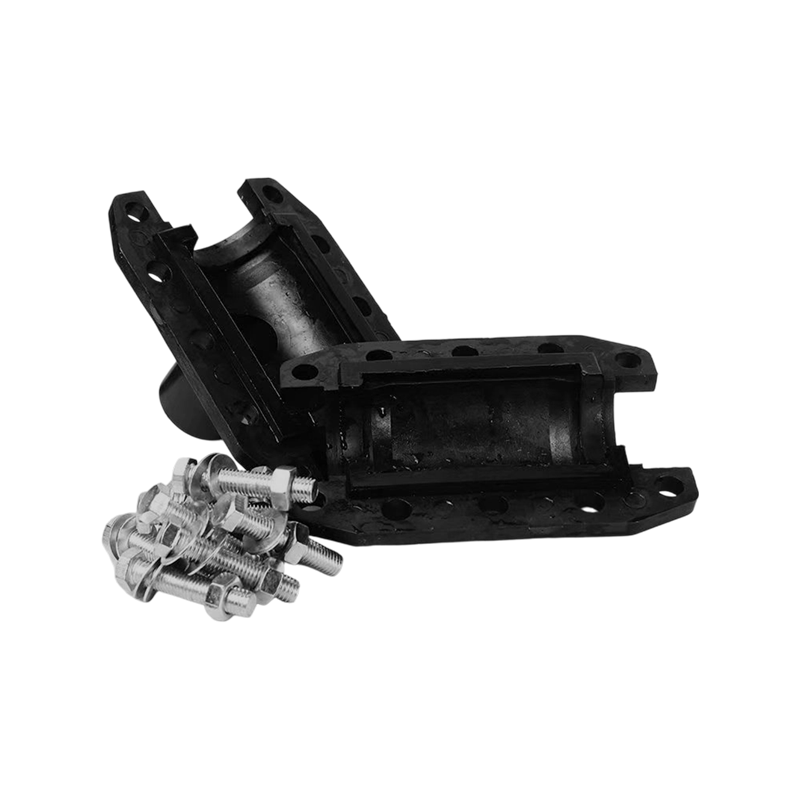

Two-Piece Clamp Design — consists of two fitting halves that surround the main pipe for branch connection installation.

Branch Outlet — provides a dedicated connection point for an additional branch pipeline.

Polypropylene Construction — provides lightweight handling and good corrosion resistance for compatible applications.

Clamp-Type Installation — the two fitting halves are positioned around the main pipe and secured together.

Flexible Branch Configuration — supports different main-pipe and branch-outlet combinations according to the supplied specifications.

Large-Diameter Options — available for main pipe sizes from 63 mm to 500 mm according to the supplied size range.

Product Specifications:
Product Model PN1.0 PN1.25 PN1.6 Material Pipe Fitting Type Connection Method
63*63 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
75*50 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
75*63 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
75*75 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
90*50 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
90*63 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
90*75 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
90*90 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
110*50 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
110*63 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
110*75 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
110*90 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
110*110 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
160*50 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
160*63 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
160*75 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
160*90 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
160*110 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
160*160 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
200*63 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
200*75 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
200*90 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
200*110 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
200*160 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
200*200 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
250*63 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
250*75 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
250*90 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
250*110 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
250*160 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
250*200 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
250*250 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
315*63 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
315*75 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
315*90 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
315*110 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
315*160 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
315*200 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
315*250 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
315*315 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
400*110 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
400*160 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
400*200 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
500*160 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
500*200 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe
500*250 ✓ Polypropylene Quick connect accessories Two half piece fittings clamp the pipe in the middle，Connect the other end to the pipe

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, pipeline suppliers, irrigation companies, engineering contractors, and private-label brands. Product configurations, packaging, and order quantities can be customized according to customer requirements and project needs.

FAQ:

What is a PP Branch Saddle used for?

It is used to create a branch connection from a compatible main pipeline without replacing the main pipe section.

How is the branch saddle installed?

The two fitting halves are positioned around the main pipe and secured together. The branch outlet is then connected to the branch pipe according to the applicable connection method.

What is the function of the branch outlet?

The outlet provides a connection point between the main pipeline and an additional branch pipeline.

What material is the PP Branch Saddle made from?

The fitting is manufactured from polypropylene (PP).

Where can a branch saddle be used?

It is suitable for compatible water supply, irrigation, pipeline distribution, and industrial piping applications requiring branch connections.

Can the PP Branch Saddle be supplied for OEM projects?

Yes. We support OEM, ODM, and OBM requirements for distributors, contractors, engineering companies, and private-label customers.
