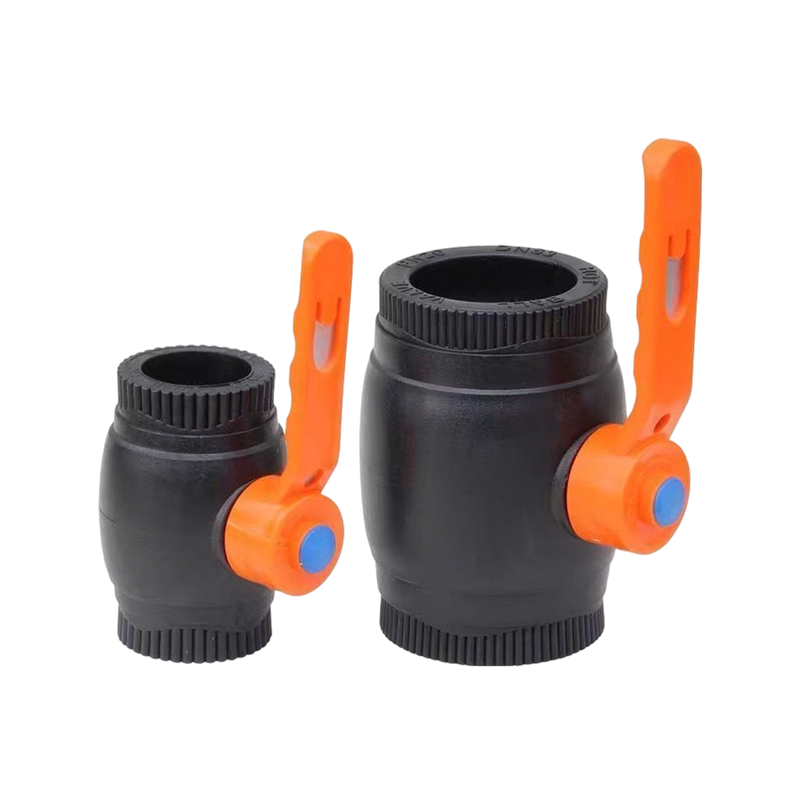

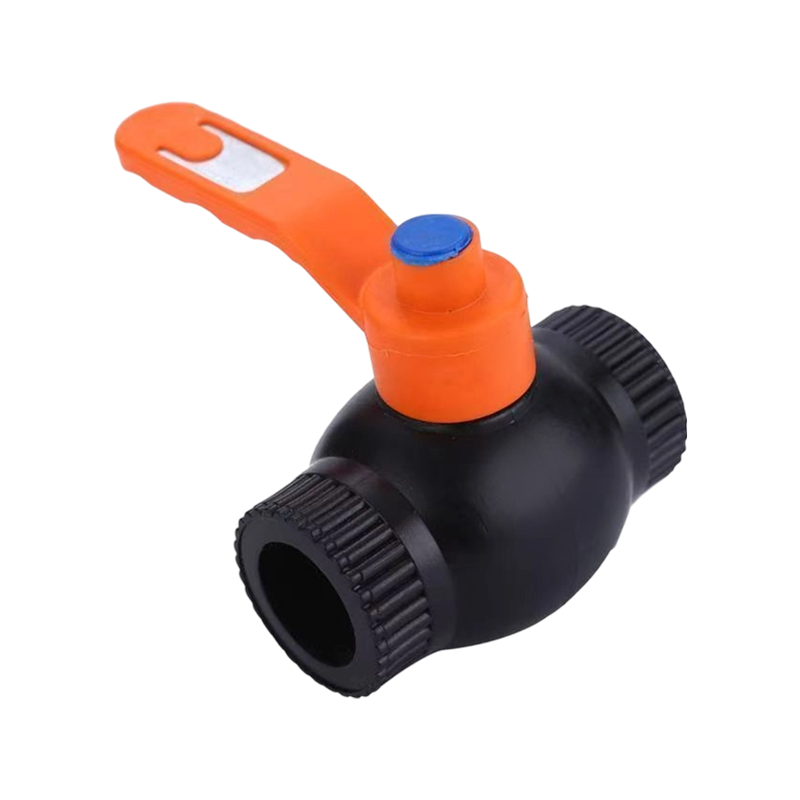

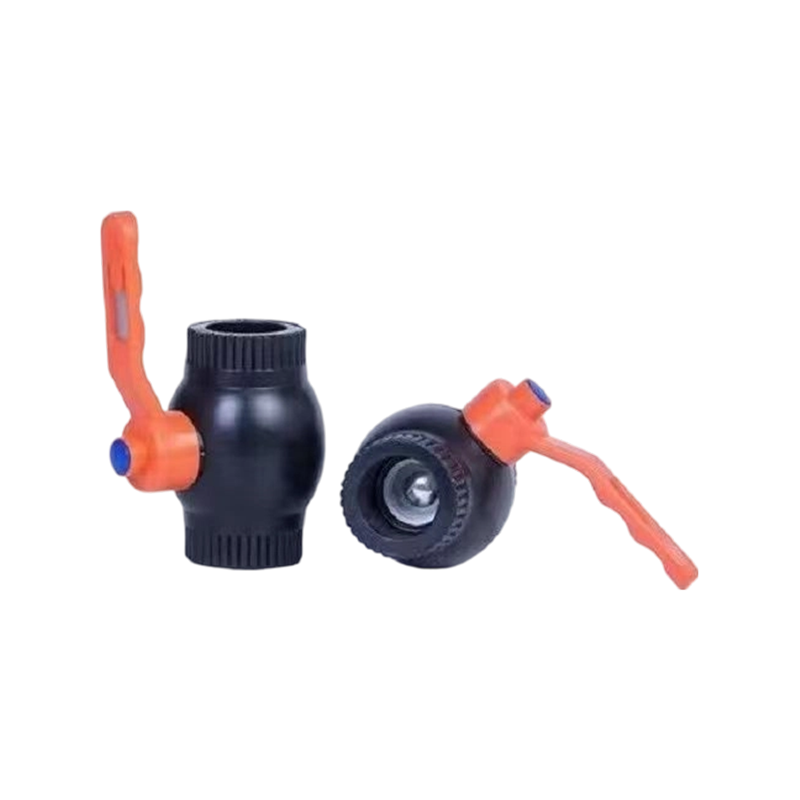

HDPE Steel Core Ball Valve

Product Overview

The HDPE Steel Core Ball Valve is a socket fusion ball valve designed for on-off flow control and pipeline isolation in compatible HDPE piping systems. Manufactured with a PE100 polyethylene body and steel core construction, it provides a practical valve solution for polyethylene pipeline applications.

The valve uses socket fusion connections, allowing compatible HDPE pipes to be inserted into the valve ends and heat-fused to form integrated pipe connections. Its ball valve mechanism provides convenient shut-off control for water supply, irrigation, and other compatible fluid-handling systems.

Category: HDPE Valves Prev: HDPE Double Union Steel Core Ball Valve Next: No next article

Description Contact Us

Product Description:

Applications

Water Supply Systems — for on-off flow control and pipeline isolation in compatible HDPE water distribution systems.

Irrigation Systems — for controlling and isolating water flow in irrigation branches and distribution pipelines.

Pipeline Distribution Systems — for isolating sections of compatible HDPE piping when required.

Fluid Handling Systems — for compatible HDPE pipelines requiring shut-off control.

Key Features

Steel Core Construction — incorporates a steel core within the valve structure as part of the valve construction.

PE100 Body — manufactured with PE100 polyethylene, providing good corrosion and chemical resistance with lightweight handling.

Ball Valve Design — provides convenient quarter-turn operation for on-off flow control.

Socket Fusion Connection — compatible HDPE pipes are inserted into the valve ends and heat-fused to form integrated connections.

Pipeline Isolation — allows individual sections of a compatible HDPE piping system to be shut off when required.

Multiple Size Options — available from 20 mm to 110 mm according to the supplied specifications.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
20			✓	Polyethylene PE100	Socket fittings	Insert the pipe into the accessory and use hot melt socket
25			✓	Polyethylene PE100	Socket fittings	Insert the pipe into the accessory and use hot melt socket
32			✓	Polyethylene PE100	Socket fittings	Insert the pipe into the accessory and use hot melt socket
40			✓	Polyethylene PE100	Socket fittings	Insert the pipe into the accessory and use hot melt socket
50			✓	Polyethylene PE100	Socket fittings	Insert the pipe into the accessory and use hot melt socket
63			✓	Polyethylene PE100	Socket fittings	Insert the pipe into the accessory and use hot melt socket
75			✓	Polyethylene PE100	Socket fittings	Insert the pipe into the accessory and use hot melt socket
90			✓	Polyethylene PE100	Socket fittings	Insert the pipe into the accessory and use hot melt socket
110			✓	Polyethylene PE100	Socket fittings	Insert the pipe into the accessory and use hot melt socket

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, pipeline suppliers, irrigation companies, engineering contractors, and private-label brands. Product configurations, packaging, and order quantities can be customized according to customer requirements and project needs.
