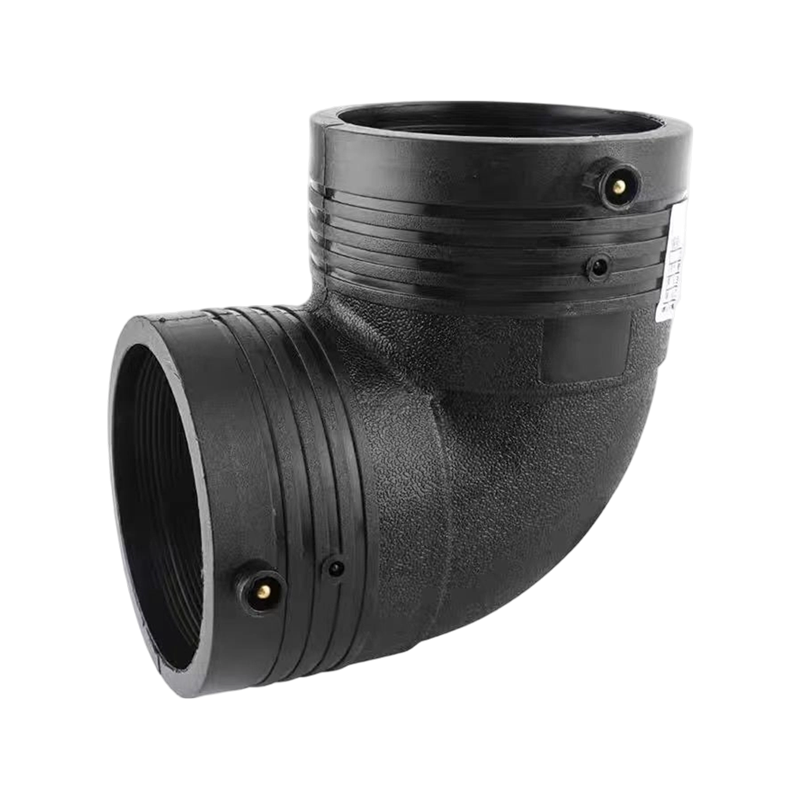

HDPE Electrofusion Elbow

Product Overview

The HDPE Electrofusion Elbow is designed to change the direction of compatible HDPE pipelines while maintaining a secure electrofusion connection. Manufactured from PE100 polyethylene, this fitting uses socket-type electrofusion connections, with the pipe inserted into the fitting socket and fused to form an integrated joint.

The elbow configuration provides a practical solution for routing HDPE pipelines around changes in direction. With sizes available from 50 mm to 400 mm, the HDPE Electrofusion Elbow is suitable for compatible water supply, irrigation, municipal, and other HDPE pipeline systems.

Category: Electrofusion Fittings Prev: HDPE Electrofusion Equal Tee Next: HDPE Electrofusion Male Adaptor

Description Contact Us

Product Description:

Applications

Water Supply Systems — for changing pipeline direction in compatible HDPE water distribution networks.

Irrigation Systems — for routing HDPE irrigation pipelines around changes in direction.

Municipal Pipeline Networks — for directional connections in compatible HDPE water infrastructure.

Pipeline Distribution Systems — for connecting HDPE pipe sections where a change in pipeline direction is required.

Industrial Piping — for compatible fluid-handling systems requiring directional HDPE pipe connections.

Key Features

Electrofusion Elbow Configuration — provides a directional connection for compatible HDPE pipeline systems.

Electrofusion Socket Connection — compatible HDPE pipes are inserted into the fitting sockets and joined using the appropriate electrofusion process.

PE100 Material — manufactured from PE100 polyethylene for good corrosion resistance, impact resistance, and long-term pipeline performance.

Integrated Fusion Joint — electrofusion creates a direct fused connection between the fitting and compatible HDPE pipes.

Directional Pipeline Routing — helps route HDPE pipelines where a change in direction is required.

Wide Size Selection — available in sizes from 50 mm to 400 mm according to the supplied specifications.

Product Specifications:

Product Model	PN1.0	PN1.25	PN1.6	Material	Pipe Fitting Type	Connection Method
L50			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L63			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L75			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L90			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L110			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L125			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L140			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L160			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L200			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L225			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L250			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L315			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket
L400			✓	PE100 grade, polyethylene	Electric fusion socket fittings	Insert the pipe into the accessory and use electric fusion socket

OEM, ODM & OBM Services

We support OEM, ODM, and OBM requirements for distributors, pipeline suppliers, irrigation companies, engineering contractors, and private-label brands. Product configurations, packaging, and order quantities can be customized according to customer requirements and project needs.
